85AET (2001)
Control

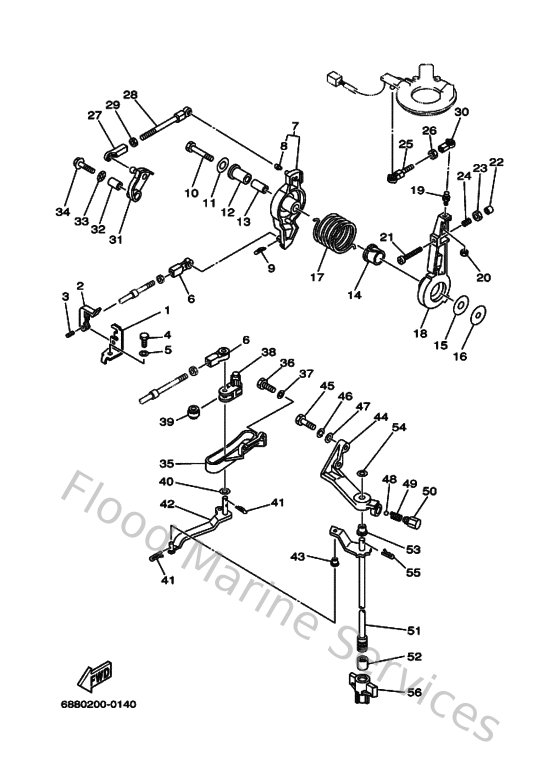

Diagram: Control
Parts List
Reference
Description
Price
1
663485310000
Bracket, remote control
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001200
Pin, spring
Loading…
↗
4
970950801600
Bolt, hexagon deep recess
Loading…
↗
5
929950810000
Ybs67-8 washer, spring
Loading…
↗
6
663483440000
Cable end, remote control
Loading…
↗
7
68841632091S
Lever, magneto control
Loading…
↗
8
662412140100
Joint 1
Loading…
↗
9
904681800800
Clip 620436610000
Loading…
↗
10
970950804500
Bolt, hexagon
Loading…
↗
11
9020108M2300
Washer, plate (6e5)
Loading…
↗
12
903861208900
Bushing(663)
Loading…
↗
13
90387084J800
Collar
Loading…
↗
14
9038622M1300
Bushing (688)
Loading…
↗
15
902021209200
Washer, plate(663)
Loading…
↗
16
9020108M1300
Washer plate (682)
Loading…
↗
17
9050829M0500
Spring, torsion (688)
Loading…
↗
18
688416310194
Lever, magneto control
Loading…
↗
19
663855180000
Joint, ball
Loading…
↗
20
953800570000
Nut (656)
Loading…
↗
21
901570601300
Screw, pan head(697)
Loading…
↗
22
688441940000
Cap
Loading…
↗
23
953800660000
Nut(661)
Loading…
↗
24
9050116M1200
Spring, compression (688)
Loading…
↗
25
682412375000
Joint, link 2
Loading…
↗
26
953800560000
Nut, hexagon (663)
Loading…
↗
27
682412370000
Joint, link 2
Loading…
↗
28
688412110100
Link, accel
Loading…
↗
31
688412130000
Cam, accel.
Loading…
↗
32
9038706M1700
Collar, lever 1
Loading…
↗
33
9020610M0400
Washer, wave (676)
Loading…
↗
34
9011906M2400
Bolt, with washer
Loading…
↗
35
688441170094
Bracket 1
Loading…
↗
36
970130602000
Bolt(62y)
Loading…
↗
37
929030660000
Washer, plain (646)
Loading…
↗
38
688441240000
Link, shift rod
Loading…
↗
39
688441220000
Bushing, shift rod lever
Loading…
↗
40
9020207M0700
Washer, plate (688)
Loading…
↗
42
688441210200
Lever, shift rod
Loading…
↗
43
9038606M1200
Bushing (688)
Loading…
↗
44
688441180194
Bracket
Loading…
↗
45
970130803000
Bolt
Loading…
↗
46
929030810000
Ybs67-8 washer, spring
Loading…
↗
47
929030860000
Washer, plain (663)
Loading…
↗
48
9350104M0200
Ball (697)
Loading…
↗
49
905011208200
Spring 6484411600
Loading…
↗
50
648427150000
Bushing 2
Loading…
↗
51
688441201200
Handle gear shift assembly
Loading…
↗
52
696441470000
Boot, shift rod
Loading…
↗
53
903860800600
Bushing (688)
Loading…
↗
54
929900820000
Ybs66-8 washer, plain
Loading…
↗
56
697436620000
Guide, reverse rod
Loading…
↗
