9.9FMH (2001)
Control

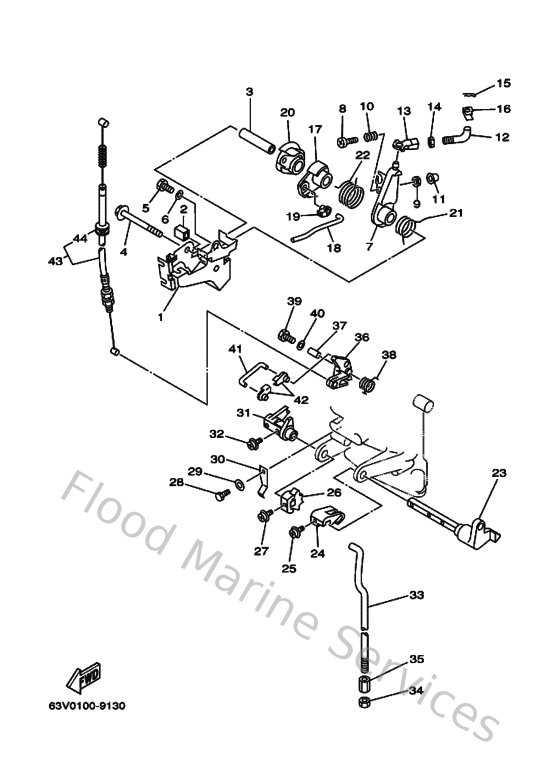

Diagram: Control
Parts List
Reference
Description
Price
1
63V144970100
Stay, Throttle Wire
Loading…
↗
2
689441940000
Cap
Loading…
↗
3
9038706M5000
Collar(63v)
Loading…
↗
4
958950606500
Bolt, flange(63v)
Loading…
↗
5
970950601200
Bolt(gh1)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
63V416310000
Lever, magneto control
Loading…
↗
8
978850603000
Screw, pan head(6e0)
Loading…
↗
9
953800660000
Nut(661)
Loading…
↗
10
9050112M1600
Spring (6a1)
Loading…
↗
11
688441940000
Cap
Loading…
↗
12
63V412380000
Joint, link
Loading…
↗
13
6H4412370000
Joint, link
Loading…
↗
14
953800570000
Nut (656)
Loading…
↗
15
904681000500
Pin, hair 6264123500
Loading…
↗
16
63V412230000
Washer, lock 1
Loading…
↗
17
63V412830100
Lever, free accel.
Loading…
↗
18
63V412110000
Link, accel.
Loading…
↗
19
661412620200
Joint, choke lever
Loading…
↗
20
63V416380000
Pulley
Loading…
↗
21
9050816M3700
Spring, torsion(63v)
Loading…
↗
22
9050820M3800
Spring, torsion(63v)
Loading…
↗
23
63V441230100
Arm, shift rod
Loading…
↗
24
63V441210100
Lever, shift rod
Loading…
↗
25
979850521200
Screw, with washer(6g7)
Loading…
↗
26
63V441250000
Lever, shift rod
Loading…
↗
27
9015905M2500
Screw,pan head (646)
Loading…
↗
30
63V441160000
Spring
Loading…
↗
31
63V441220100
Bushing, shift rod lever
Loading…
↗
33
63V441430100
Rod, shift
Loading…
↗
34
9538R0670000
Nut
Loading…
↗
35
901700601500
Connector, shift rod
Loading…
↗
36
63V157460000
Arm
Loading…
↗
37
9038706M0600
Collar (651)
Loading…
↗
38
9050808M3900
Spring, torsion(63v)
Loading…
↗
39
970800602000
Bolt(7u8)
Loading…
↗
40
929950660000
Washer, plain (646)
Loading…
↗
41
6L2157470000
Link
Loading…
↗
43
63V157700000
Cable comp., starter stop
Loading…
↗
44
9048010M1600
Grommet(6j8)
Loading…
↗
