E40XMH (1999)
Control

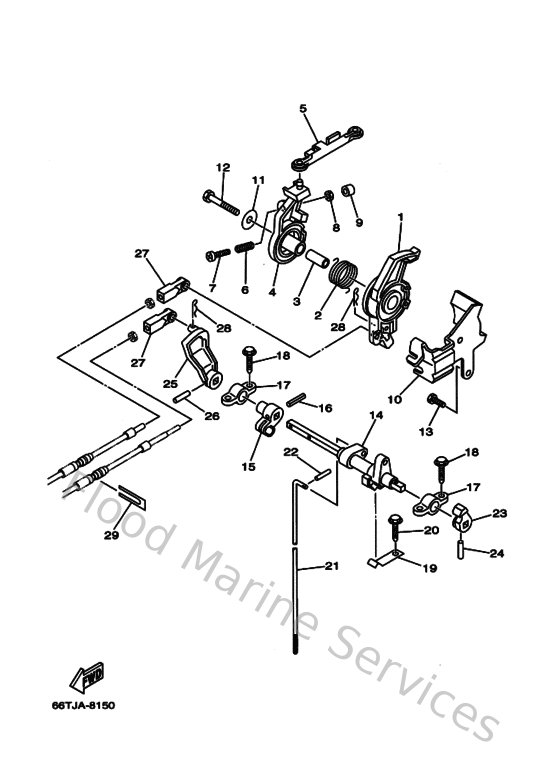

Diagram: Control
Parts List
Reference
Description
Price
1
66T416380000
Pulley
Loading…
↗
2
66T421670000
Spring 1
Loading…
↗
3
9038708M1600
Collar
Loading…
↗
5
66T412370000
Joint, link
Loading…
↗
6
9050110M8400
Spring, compression
Loading…
↗
7
978850603500
Screw, pan head(6h4)
Loading…
↗
8
953800670000
Nut
Loading…
↗
9
688441940000
Cap
Loading…
↗
10
66T144970000
Stay, throttle wire
Loading…
↗
11
9020108M5400
Washer, plate (6e5)
Loading…
↗
12
970800804500
Bolt, hexagon
Loading…
↗
13
970950601400
Bolt(gj3)
Loading…
↗
14
66T441210000
Lever, shift rod
Loading…
↗
15
66M441220000
Bushing, shift rod lever
Loading…
↗
16
9025403M0500
Pin, spring
Loading…
↗
17
6F5416620000
Bracket 2
Loading…
↗
18
9010906M8100
Bolt
Loading…
↗
19
682441160100
Spring
Loading…
↗
20
9010906M8600
Bolt
Loading…
↗
21
66T441430000
Rod, shift
Loading…
↗
22
914901601200
Pin, cotter (e57)
Loading…
↗
