Yamaha Outboard Parts - Control - F15AEP (2001) | Flood Marine

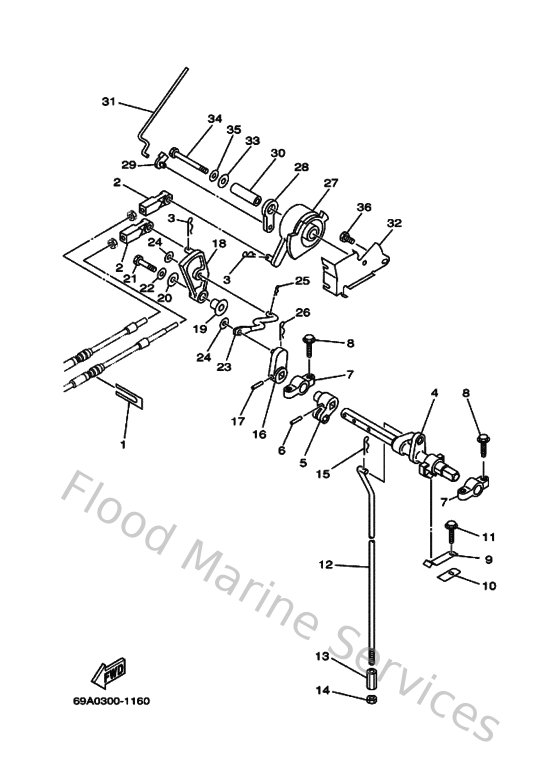

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6H3485380000
Clamp, cable
Loading…

↗
2
663483440000
Cable end, remote control
Loading…

↗
3
904681800800
Clip 620436610000
Loading…

↗
4
65W441210000
Lever, shift rod
Loading…

↗
5
66M441220000
Bushing, shift rod lever
Loading…

↗
6
9025403M0500
Pin, spring
Loading…

↗
7
6F5416620000
Bracket 2
Loading…

↗
8
9010906M8100
Bolt
Loading…

↗
9
65W441160000
Spring
Loading…

↗
10
66R441140000
Stopper
Loading…

↗
11
9010906M8600
Bolt
Loading…

↗
12
66M441430000
Rod, shift
Loading…

↗
13
901700601500
Connector, shift rod
Loading…

↗
14
9538R0670000
Nut
Loading…

↗
16
65W441420000
Joint
Loading…

↗
18
65W441250000
Lever, shift rod
Loading…

↗
19
9038706M2900
Coller (6a0)
Loading…

↗
20
9020106M3100
Washer (6a0)
Loading…

↗
21
970950602500
Bolt
Loading…

↗
22
929950660000
Washer, plain (646)
Loading…

↗
23
66M441920000
Joint, rod 1
Loading…

↗
24
9020105M0600
Washer, plate(61u)
Loading…

↗
25
904681000500
Pin, hair 6264123500
Loading…

↗
27
65W416380000
Pulley
Loading…

↗
28
65W412830000
Lever, free accel.
Loading…

↗
29
661412620200
Joint, choke lever
Loading…

↗
30
903870606400
Collar
Loading…

↗
31
66M412110000
Link, accel.
Loading…

↗
32
65W144970100
Stay, Throttle Wire
Loading…

↗
34
975950655500
Bolt, hexagon w/w deep recess
Loading…

↗
36
970950601000
Bolt
Loading…

↗
