F40AET (1999)
Control

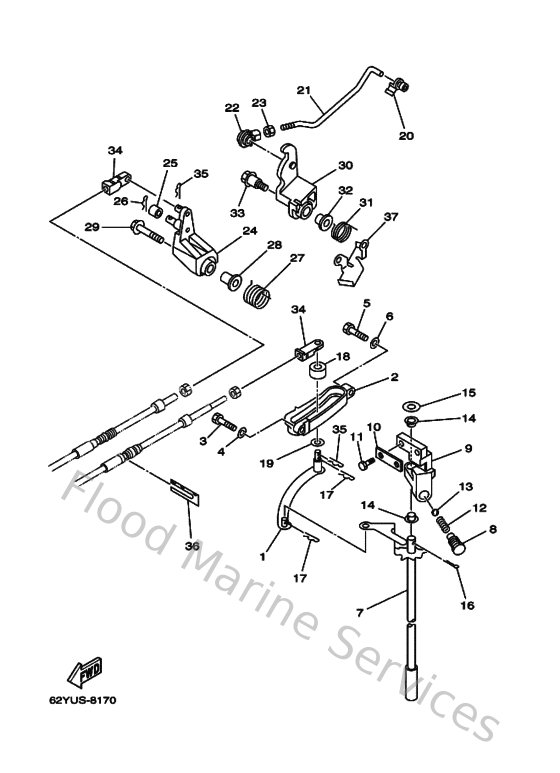

Diagram: Control
Parts List
Reference
Description
Price
1
62Y441210100
Lever, shift rod
Loading…
↗
2
62Y44117014D
Bracket
Loading…
↗
3
970950602000
Bolt(7u8)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
970950602500
Bolt
Loading…
↗
6
929950660000
Washer, plain (646)
Loading…
↗
7
62Y441200200
Handle gear shift assembly
Loading…
↗
8
62Y427150100
Bushing
Loading…
↗
9
62Y441180000
Bracket
Loading…
↗
10
62Y441120000
Stay, handle gear shift
Loading…
↗
11
970800602000
Bolt(7u8)
Loading…
↗
12
905011208200
Spring 6484411600
Loading…
↗
13
9350104M0200
Ball (697)
Loading…
↗
14
9038690M9000
Bush(61a)
Loading…
↗
15
9020110M2000
Washer, plate (663)
Loading…
↗
16
914902001500
Pin, cotter (648)
Loading…
↗
17
904681800800
Clip 620436610000
Loading…
↗
18
688441220000
Bushing, shift rod lever
Loading…
↗
19
9020207M0700
Washer, plate (688)
Loading…
↗
20
6F5412370000
Joint, link
Loading…
↗
21
62Y412410000
Rod, link
Loading…
↗
22
6H4412370000
Joint, link
Loading…
↗
23
953800570000
Nut (656)
Loading…
↗
24
62Y421540000
Lever, throttle control
Loading…
↗
25
62Y421710000
Bushing
Loading…
↗
26
914901601000
Pin, cotter
Loading…
↗
27
62Y441350000
Spring
Loading…
↗
28
9038706M4500
Collar(62y)
Loading…
↗
29
958950603000
Bolt, flange deep recess
Loading…
↗
30
62Y423350000
Lever, Accel. Control
Loading…
↗
31
62Y441160100
Spring
Loading…
↗
32
903861000900
Bushing 6484418600
Loading…
↗
33
9010906M3000
Bolt(62y)
Loading…
↗
34
6G8263630000
End, wire 1
Loading…
↗
36
62Y485380000
Clamp, cable 1
Loading…
↗
37
62Y421590000
Stay
Loading…
↗
