F4AMH (2001)
Control

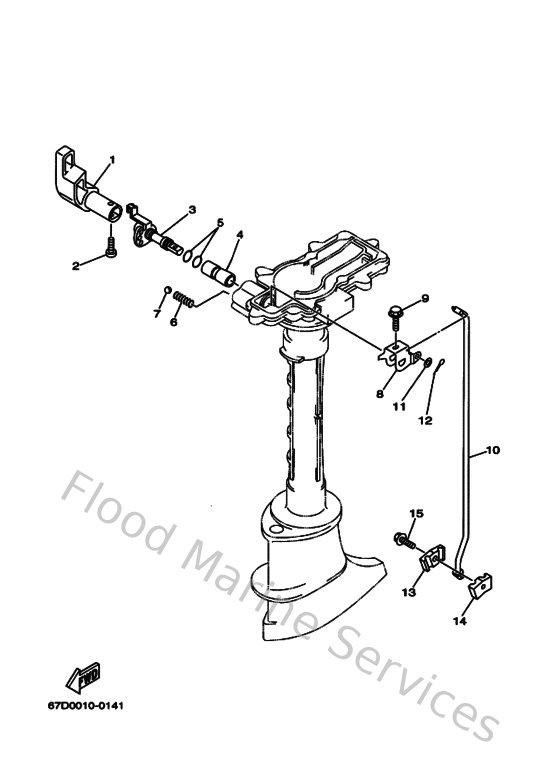

Diagram: Control
Parts List
Reference
Description
Price
1
68DG41110000
Handle, gear shift
Loading…
↗
2
986800552000
Ybs53-520 screw,flat head
Loading…
↗
3
68DG41190000
Shaft Change
Loading…
↗
4
68DG41220100
Bushing, shift rod lever
Loading…
↗
5
932100935000
O-ring
Loading…
↗
6
905011227400
Spring 6554411600
Loading…
↗
7
935051602400
Ball
Loading…
↗
8
68DG41210000
Lever Shift Rod 1
Loading…
↗
9
9011905M0400
Bolt, with washer
Loading…
↗
10
67D441430000
Rod Shift
Loading…
↗
11
929900560000
Washer, plain (646)
Loading…
↗
12
914901601000
Pin, cotter
Loading…
↗
13
68DG41450000
Connector, shift rod 1
Loading…
↗
14
68DG41460000
Connector, shift rod 2
Loading…
↗
15
9011906ME000
Bolt, with washer
Loading…
↗
