F6AMH (2000)
Control

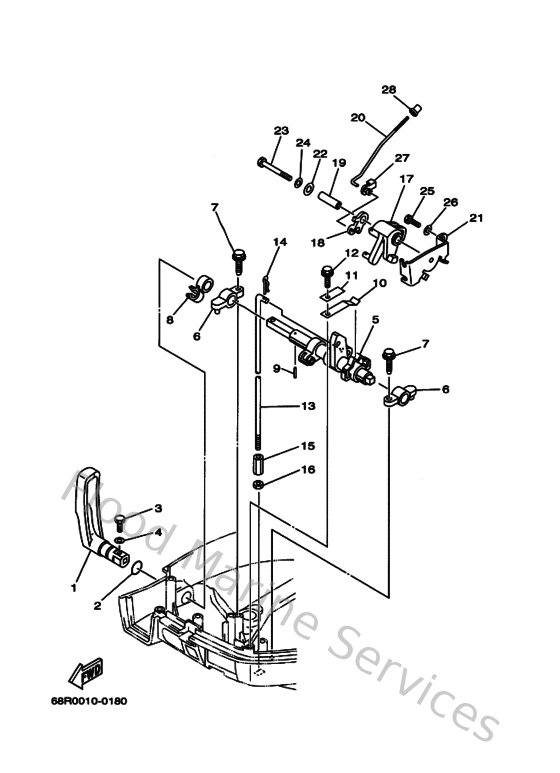

Diagram: Control
Parts List
Reference
Description
Price
1
68T441110000
Handle, gear shift
Loading…
↗
2
932101232700
O-ring(3ld)
Loading…
↗
3
970950501600
Bolt(6a1)
Loading…
↗
4
929900560000
Washer, plain (646)
Loading…
↗
5
68T441210000
Lever, shift rod
Loading…
↗
6
6G1416620194
Bracket
Loading…
↗
7
9010906M8100
Bolt
Loading…
↗
8
9046410M6000
Clamp
Loading…
↗
9
916903001400
Pin, spring (647)
Loading…
↗
10
65W441160000
Spring
Loading…
↗
11
66R441140000
Stopper
Loading…
↗
12
9010906M8600
Bolt
Loading…
↗
13
68T441430000
Rod, shift 1
Loading…
↗
14
904681800100
Clip
Loading…
↗
15
61N441460000
Connector, shift rod
Loading…
↗
16
953800670000
Nut
Loading…
↗
17
68T416380000
Pulley
Loading…
↗
18
68R412830000
Lever Free Accel.
Loading…
↗
19
9038706M5900
Collar (6h3)
Loading…
↗
20
68T412110000
Link, accel.
Loading…
↗
21
68T144970000
Stay, throttle wire
Loading…
↗
22
9020106M6200
Washer, plate (6e5)
Loading…
↗
23
970800604500
Bolt, hexagon
Loading…
↗
24
929950660000
Washer, plain (646)
Loading…
↗
25
970950601200
Bolt(gh1)
Loading…
↗
27
661412620200
Joint, choke lever
Loading…
↗
28
647143956000
Cap,over flow pipe
Loading…
↗
