Yamaha Outboard Parts - Control - F8BMH (1991) | Flood Marine

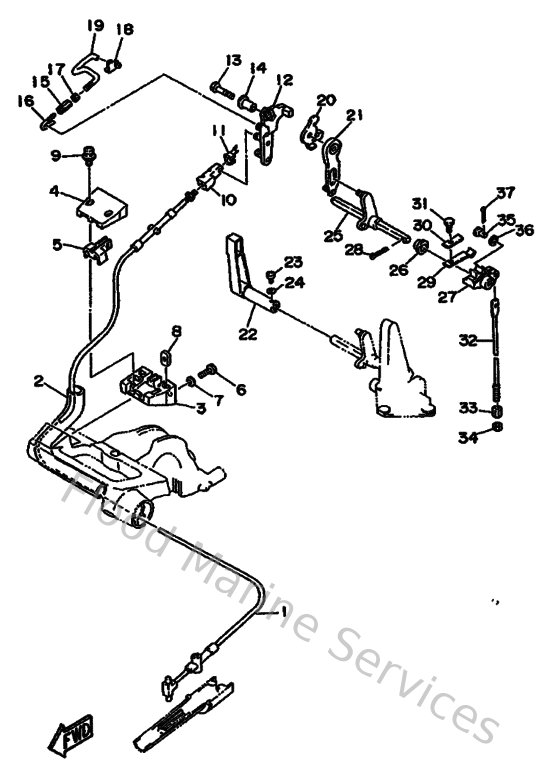

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
6G9483110200
Cable
Loading…

↗
2
9044524M0000
Hose (l165)
Loading…

↗
3
6G8416610098
Bracket 1
Loading…

↗
4
6G8416620098
Bracket 2
Loading…

↗
5
6G8416630000
Bracket 3
Loading…

↗
6
970950601600
Bolt, hexagon deep recess
Loading…

↗
7
929900660000
Washer, plain (646)
Loading…

↗
8
6G8416540000
Nut
Loading…

↗
9
9015905M0600
Screw (6g8)
Loading…

↗
10
6G8263630000
End, wire 1
Loading…

↗
11
6G8263640000
End, wire 2
Loading…

↗
12
6G8412120000
Arm, accel
Loading…

↗
13
973130603000
Bolt
Loading…

↗
14
9038706M5800
Collar (6g8)
Loading…

↗
15
6G8412380100
Joint, link
Loading…

↗
16
6G8412410100
Rod, Link
Loading…

↗
17
953030460000
Nut, hexagon (663)
Loading…

↗
18
6G8412370100
Joint, link
Loading…

↗
19
6G8412420100
Rod 2
Loading…

↗
20
6G8144930000
Stay 1
Loading…

↗
21
6G8441110000
Handle, gear shift 1
Loading…

↗
22
6G9441110098
Handle Gear Shift
Loading…

↗
23
985030401400
Screw, pan head(ga5)
Loading…

↗
24
929900420000
Ybs66-4 washer, plain
Loading…

↗
25
6G8441590000
Handle, gear shift 2
Loading…

↗
26
682441320000
Bushing
Loading…

↗
28
914902502000
Pin, cotter
Loading…

↗
29
682441160000
Spring
Loading…

↗
30
682441170000
Bracket 1
Loading…

↗
31
970800601200
Bolt(gh1)
Loading…

↗
32
6G9441430000
Rod Shift 1
Loading…

↗
33
901700601500
Connector, shift rod
Loading…

↗
34
9538R0670000
Nut
Loading…

↗
35
917900502000
Pin, Clevis
Loading…

↗
36
929900560000
Washer, plain (646)
Loading…

↗
37
914901601000
Pin, cotter
Loading…

↗
