F9.9BMH (1987)
Control

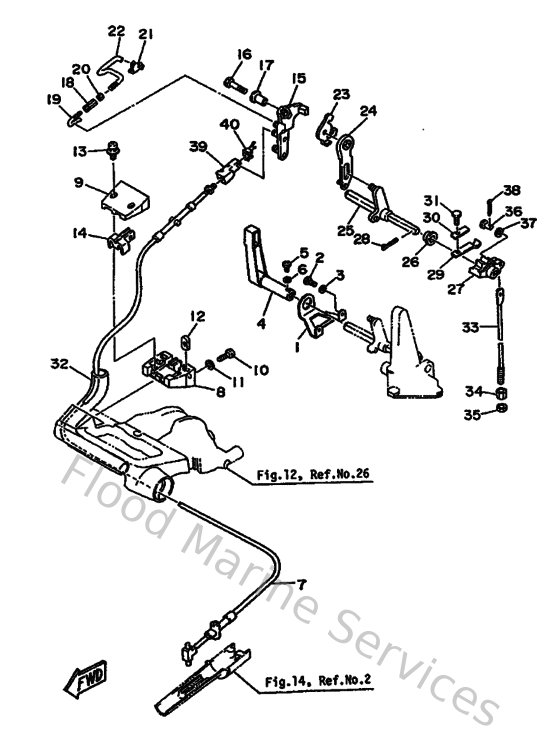

Diagram: Control
Parts List
Reference
Description
Price
2
973130601200
Bolt(gh1)
Loading…
↗
3
929030660000
Washer, plain (646)
Loading…
↗
4
6G9441110000
Handle Gear Shift
Loading…
↗
5
985030401600
Screw, pan head(ga5)
Loading…
↗
6
929030460000
Ybs66-4 washer, plain
Loading…
↗
7
6G9483110200
Cable
Loading…
↗
8
6G8416610098
Bracket 1
Loading…
↗
9
6G8416620098
Bracket 2
Loading…
↗
10
973950601600
Bolt, hexagon deep recess
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6G8416540000
Nut
Loading…
↗
13
9015905M0600
Screw (6g8)
Loading…
↗
14
6G8416630000
Bracket 3
Loading…
↗
15
6G8412120000
Arm, accel
Loading…
↗
16
973130603000
Bolt
Loading…
↗
17
9038706M5800
Collar (6g8)
Loading…
↗
18
6G8412380100
Joint, link
Loading…
↗
19
6G8412410100
Rod, Link
Loading…
↗
20
953030460000
Nut, hexagon (663)
Loading…
↗
21
6G8412370000
Joint, link
Loading…
↗
22
6G8412420100
Rod 2
Loading…
↗
23
6G8144930000
Stay 1
Loading…
↗
24
6G8441110000
Handle, gear shift 1
Loading…
↗
25
6G8441590000
Handle, gear shift 2
Loading…
↗
26
682441320000
Bushing
Loading…
↗
28
914902502000
Pin, cotter
Loading…
↗
29
682441160000
Spring
Loading…
↗
30
682441170000
Bracket 1
Loading…
↗
31
970130601200
Bolt(gh1)
Loading…
↗
32
9044524M0000
Hose (l165)
Loading…
↗
33
6G9441430000
Rod Shift 1
Loading…
↗
34
901700601500
Connector, shift rod
Loading…
↗
35
9538R0670000
Nut
Loading…
↗
36
917900502000
Pin, Clevis
Loading…
↗
37
929900560000
Washer, plain (646)
Loading…
↗
38
914901601000
Pin, cotter
Loading…
↗
39
6G8263630000
End, wire 1
Loading…
↗
40
6G8263640000
End, wire 2
Loading…
↗
