F9.9CMH (2000)
Control

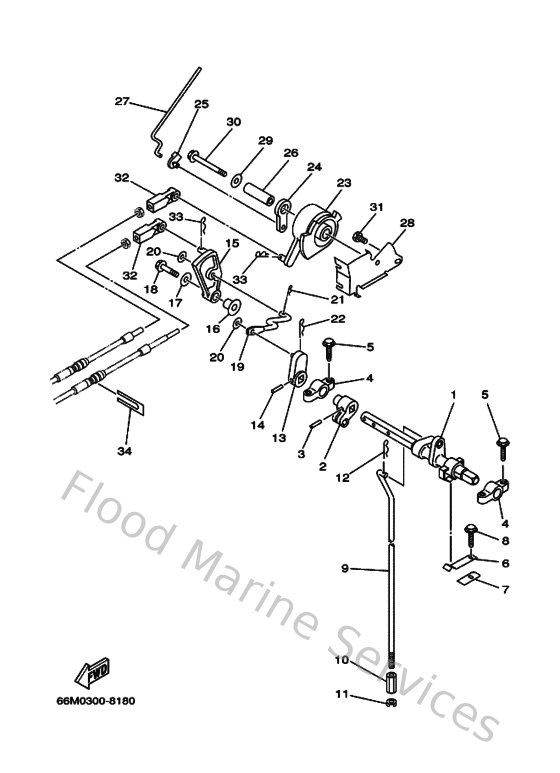

Diagram: Control
Parts List
Reference
Description
Price
1
65W441210000
Lever, shift rod
Loading…
↗
2
66M441220000
Bushing, shift rod lever
Loading…
↗
3
9025403M0500
Pin, spring
Loading…
↗
4
6F5416620000
Bracket 2
Loading…
↗
5
9010906M8100
Bolt
Loading…
↗
6
65W441160000
Spring
Loading…
↗
7
66R441140000
Stopper
Loading…
↗
8
9010906M8600
Bolt
Loading…
↗
9
66M441430000
Rod, shift
Loading…
↗
10
901700601500
Connector, shift rod
Loading…
↗
11
9538R0670000
Nut
Loading…
↗
12
904681800800
Clip 620436610000
Loading…
↗
23
65W416380000
Pulley
Loading…
↗
24
65W412830000
Lever, free accel.
Loading…
↗
25
661412620200
Joint, choke lever
Loading…
↗
26
903870606400
Collar
Loading…
↗
27
66M412110000
Link, accel.
Loading…
↗
28
65W144970100
Stay, Throttle Wire
Loading…
↗
29
9020106M3100
Washer (6a0)
Loading…
↗
30
975950655500
Bolt, hexagon w/w deep recess
Loading…
↗
31
970950601000
Bolt
Loading…
↗
