Yamaha Outboard Parts - Control - FT8DMHSL (2001) | Flood Marine

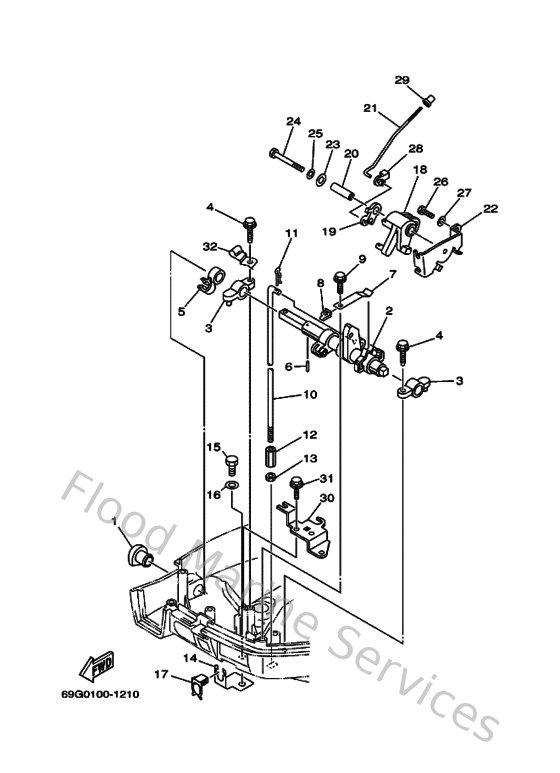

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
68T427260000
Grommet
Loading…

↗
2
68T441210100
Lever, shift rod
Loading…

↗
3
6G1416620194
Bracket
Loading…

↗
4
9010906M8100
Bolt
Loading…

↗
5
9046410M6000
Clamp
Loading…

↗
6
916903001400
Pin, spring (647)
Loading…

↗
7
65W441160000
Spring
Loading…

↗
8
66R441170000
Bracket
Loading…

↗
9
9010906M8600
Bolt
Loading…

↗
10
68T441431000
Rod, shift 1
Loading…

↗
11
904681800100
Clip
Loading…

↗
12
901700601500
Connector, shift rod
Loading…

↗
13
953800670000
Nut
Loading…

↗
14
68T485380000
Clamp, cable 1
Loading…

↗
15
970950601200
Bolt(gh1)
Loading…

↗
16
929900660000
Washer, plain (646)
Loading…

↗
17
63D485380000
Clamp, cable 1
Loading…

↗
18
68T416380000
Pulley
Loading…

↗
19
68T412830000
Lever, free accel.
Loading…

↗
20
9038706M5900
Collar (6h3)
Loading…

↗
21
68T412110000
Link, accel.
Loading…

↗
22
68T144970000
Stay, throttle wire
Loading…

↗
23
9020106M6200
Washer, plate (6e5)
Loading…

↗
24
970950604500
Bolt, hexagon
Loading…

↗
27
929950660000
Washer, plain (646)
Loading…

↗
28
661412620200
Joint, choke lever
Loading…

↗
29
647143956000
Cap,over flow pipe
Loading…

↗
30
68T157741000
Stay 4
Loading…

↗
