Yamaha Outboard Parts - Control - FT9.9AMH (2001) | Flood Marine

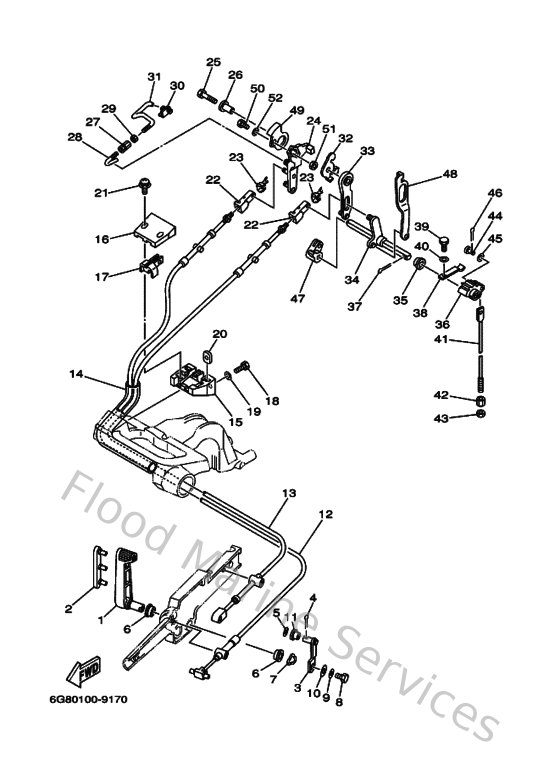

Diagram: Control

Diagram

Parts List

Reference
Description
Price


22
6G8263630000
End, wire 1
Loading…

↗
23
6G8263640000
End, wire 2
Loading…

↗
24
6G8412120000
Arm, accel
Loading…

↗
25
970130603000
Bolt
Loading…

↗
26
9038706M5800
Collar (6g8)
Loading…

↗
27
6G8412380100
Joint, link
Loading…

↗
28
6G8412410100
Rod, Link
Loading…

↗
29
953030460000
Nut, hexagon (663)
Loading…

↗
30
6G8412370100
Joint, link
Loading…

↗
31
6G8412420100
Rod 2
Loading…

↗
32
6G8144930000
Stay 1
Loading…

↗
33
6G8441110000
Handle, gear shift 1
Loading…

↗
34
6G8441590000
Handle, gear shift 2
Loading…

↗
35
682441320000
Bushing
Loading…

↗
36
682441210100
Lever, shift rod
Loading…

↗
37
914902502000
Pin, cotter
Loading…

↗
38
682441160100
Spring
Loading…

↗
39
970950601400
Bolt(gj3)
Loading…

↗
40
929950660000
Washer, plain (646)
Loading…

↗
41
6G8441431000
Rod, shift
Loading…

↗
42
61N441460000
Connector, shift rod
Loading…

↗
43
953800670000
Nut
Loading…

↗
44
917900502000
Pin, Clevis
Loading…

↗
45
929900560000
Washer, plain (646)
Loading…

↗
46
914901601000
Pin, cotter
Loading…

↗
47
6G8441250000
Lever, Shift Rod
Loading…

↗
