L200JETOL (2001)
Control

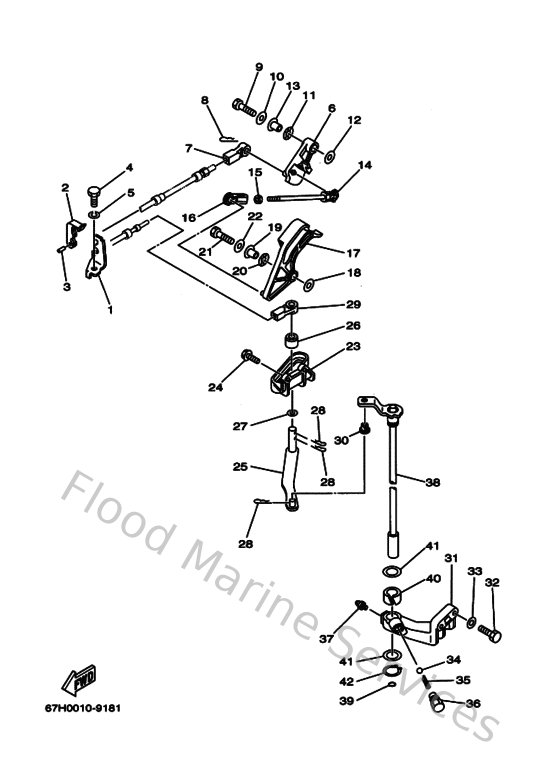

Diagram: Control
Parts List
Reference
Description
Price
1
67H485310000
Bracket, Remote Control 1
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001000
Pin, spring (663)
Loading…
↗
4
970950801600
Bolt, hexagon deep recess
Loading…
↗
5
929950810000
Ybs67-8 washer, spring
Loading…
↗
6
67H416320000
Lever, magneto control
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
8
904681800800
Clip 620436610000
Loading…
↗
9
970130603000
Bolt
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
9020610M0400
Washer, wave (676)
Loading…
↗
12
9020106M3100
Washer (6a0)
Loading…
↗
13
9038706M2900
Coller (6a0)
Loading…
↗
14
61A412370000
Joint, link
Loading…
↗
15
953800560000
Nut, hexagon (663)
Loading…
↗
16
682412370000
Joint, link 2
Loading…
↗
17
67H412130100
Cam, Accel
Loading…
↗
23
6E5441170094
Bracket
Loading…
↗
24
9011906MA200
Bolt, with washer
Loading…
↗
25
68F441210000
Lever, shift rod
Loading…
↗
26
6E5441220000
Bushing, shift rod lever
Loading…
↗
27
9020208M2000
Washer, plate (6e5)
Loading…
↗
30
9038606M1200
Bushing (688)
Loading…
↗
31
6E5441180194
Bracket 2
Loading…
↗
32
970130803000
Bolt
Loading…
↗
33
929901010000
Ybs67-10 washer, spring
Loading…
↗
34
9350104M0200
Ball (697)
Loading…
↗
35
905011208200
Spring 6484411600
Loading…
↗
36
648427150000
Bushing 2
Loading…
↗
37
9370006M0300
Nipple, grease(6a1)
Loading…
↗
38
6E5441202300
Handle gear shift assembly
Loading…
↗
39
932100935000
O-ring
Loading…
↗
40
9038616M6600
Bush(6e5)
Loading…
↗
41
902021606100
Washer, plate(663)
Loading…
↗
42
934101600600
Circlip
Loading…
↗
