L250AETO (1996)
Control

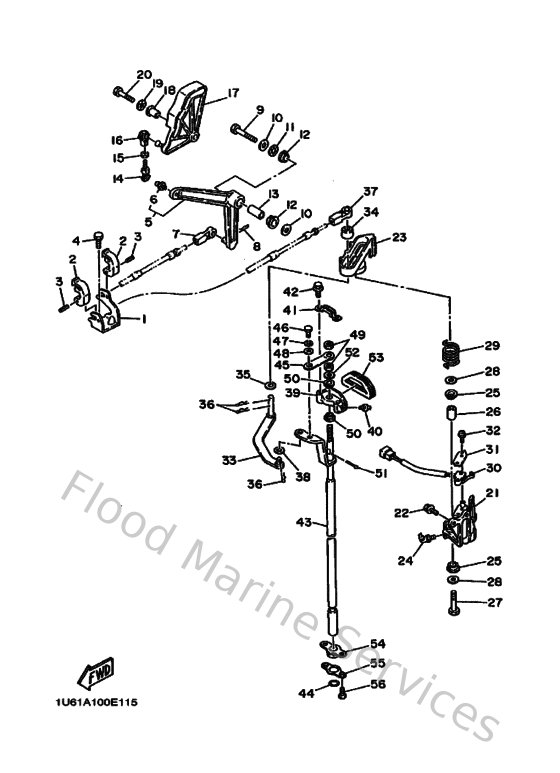

Diagram: Control
Parts List
Reference
Description
Price
1
61A485310000
Bracket, remote control 1
Loading…
↗
2
6E5485380000
Clamp, cable
Loading…
↗
3
916903001200
Pin, spring
Loading…
↗
4
975950842000
Bolt, With Washer
Loading…
↗
5
61A416320094
Lever, Magneto Control
Loading…
↗
6
663855180000
Joint, ball
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
8
904681800800
Clip 620436610000
Loading…
↗
9
970130804500
Bolt
Loading…
↗
10
929900820000
Ybs66-8 washer, plain
Loading…
↗
11
9020612M0000
Washer, wave (676)
Loading…
↗
12
903861206900
Bush(666)
Loading…
↗
13
9038708M1600
Collar
Loading…
↗
14
6G5412110100
Link, accel
Loading…
↗
15
953800560000
Nut, hexagon (663)
Loading…
↗
16
6H4412370000
Joint, link
Loading…
↗
17
61A412130000
Cam, accel.
Loading…
↗
18
9038706M2900
Coller (6a0)
Loading…
↗
19
9020610M0400
Washer, wave (676)
Loading…
↗
20
970950602500
Bolt
Loading…
↗
21
61A44117008D
Bracket
Loading…
↗
22
975950651600
Bolt, with washer(6r6)
Loading…
↗
23
61A441760094
Bracket
Loading…
↗
24
9370006M0100
Nipple, grease(61a)
Loading…
↗
26
9038708M0900
Collar(61a)
Loading…
↗
27
970900803500
Bolt(70w)
Loading…
↗
29
9050820M3100
Spring, torsion(61a)
Loading…
↗
30
61A8259F0000
Switch assembly
Loading…
↗
31
61A825880000
Plate
Loading…
↗
32
979850411600
Screw, with washer(61b)
Loading…
↗
33
61A441210000
Lever, shift rod
Loading…
↗
34
6E5441220000
Bushing, shift rod lever
Loading…
↗
35
9020208M2000
Washer, plate (6e5)
Loading…
↗
38
902020600700
Washer plate 626441880000
Loading…
↗
39
61A44118008D
Bracket
Loading…
↗
40
9370006M0300
Nipple, grease(6a1)
Loading…
↗
41
61A441160000
Spring
Loading…
↗
42
975950663000
Bolt, hexagon w/w deep recess
Loading…
↗
43
61A441203300
Handle gear shift assembly
Loading…
↗
44
932100935000
O-ring
Loading…
↗
45
61A441120000
Stay, handle gear shift
Loading…
↗
46
970800601200
Bolt(gh1)
Loading…
↗
47
929950610000
Washer(6a1)
Loading…
↗
48
929900660000
Washer, plain (646)
Loading…
↗
49
997800860000
Nut, hex.
Loading…
↗
50
9038690M9000
Bush(61a)
Loading…
↗
51
914902001500
Pin, cotter (648)
Loading…
↗
52
9020109M0200
Washer, plate(61a)
Loading…
↗
53
61A153150000
Seal, crankcase
Loading…
↗
54
61A427240000
Grommet
Loading…
↗
55
61A441380000
Washer
Loading…
↗
56
978850600800
Screw, pan head(6a3)
Loading…
↗
