L250BETO (1998)
Control

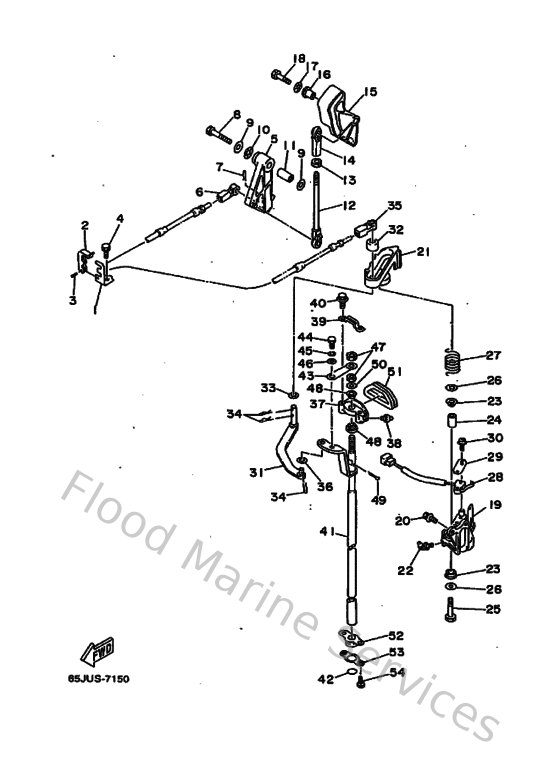

Diagram: Control
Parts List
Reference
Description
Price
1
65L485310000
Bracket Remote Control 1
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001000
Pin, spring (663)
Loading…
↗
4
975950842000
Bolt, With Washer
Loading…
↗
5
65L416320100
Lever, magneto control
Loading…
↗
6
6E5483440000
Cable end, remote control
Loading…
↗
7
904681800800
Clip 620436610000
Loading…
↗
8
970130804500
Bolt
Loading…
↗
9
929900820000
Ybs66-8 washer, plain
Loading…
↗
10
9020612M0000
Washer, wave (676)
Loading…
↗
11
9038708M1600
Collar
Loading…
↗
12
61A412370000
Joint, link
Loading…
↗
13
953800560000
Nut, hexagon (663)
Loading…
↗
14
682412370000
Joint, link 2
Loading…
↗
15
65L412130000
Cam, Accel
Loading…
↗
16
9038706M2900
Coller (6a0)
Loading…
↗
17
9020610M0400
Washer, wave (676)
Loading…
↗
18
9011906M5600
Bolt, with washer
Loading…
↗
19
61A44117008D
Bracket
Loading…
↗
20
975950651600
Bolt, with washer(6r6)
Loading…
↗
21
61A44176008D
Bracket
Loading…
↗
22
9370006M0100
Nipple, grease(61a)
Loading…
↗
23
903861206900
Bush(666)
Loading…
↗
24
9038708M0900
Collar(61a)
Loading…
↗
25
970950803500
Bolt(70w)
Loading…
↗
26
929950820000
Ybs66-8 washer, plain
Loading…
↗
27
9050820M3100
Spring, torsion(61a)
Loading…
↗
28
61A8259F0000
Switch assembly
Loading…
↗
29
61A825880100
Plate
Loading…
↗
31
61A441210000
Lever, shift rod
Loading…
↗
32
6E5441220000
Bushing, shift rod lever
Loading…
↗
33
9020208M2000
Washer, plate (6e5)
Loading…
↗
36
902020600700
Washer plate 626441880000
Loading…
↗
37
61A441180094
Bracket
Loading…
↗
38
9370006M0300
Nipple, grease(6a1)
Loading…
↗
39
61A441160000
Spring
Loading…
↗
40
975950663000
Bolt, hexagon w/w deep recess
Loading…
↗
41
61A441202200
Handle gear shift assembly
Loading…
↗
42
932100935000
O-ring
Loading…
↗
43
61A441120000
Stay, handle gear shift
Loading…
↗
44
970130601200
Bolt(gh1)
Loading…
↗
45
929030610000
Washer(6a1)
Loading…
↗
46
929030660000
Washer, plain (646)
Loading…
↗
47
953330860000
Nut(6l2)
Loading…
↗
48
9038690M9000
Bush(61a)
Loading…
↗
49
914902001200
Pin, cotter (648)
Loading…
↗
50
9020109M0200
Washer, plate(61a)
Loading…
↗
51
61A153150000
Seal, crankcase
Loading…
↗
52
61A427240000
Grommet
Loading…
↗
53
61A441380000
Washer
Loading…
↗
54
978850600800
Screw, pan head(6a3)
