Yamaha Outboard Parts - Control - LF115AET (2001) | Flood Marine

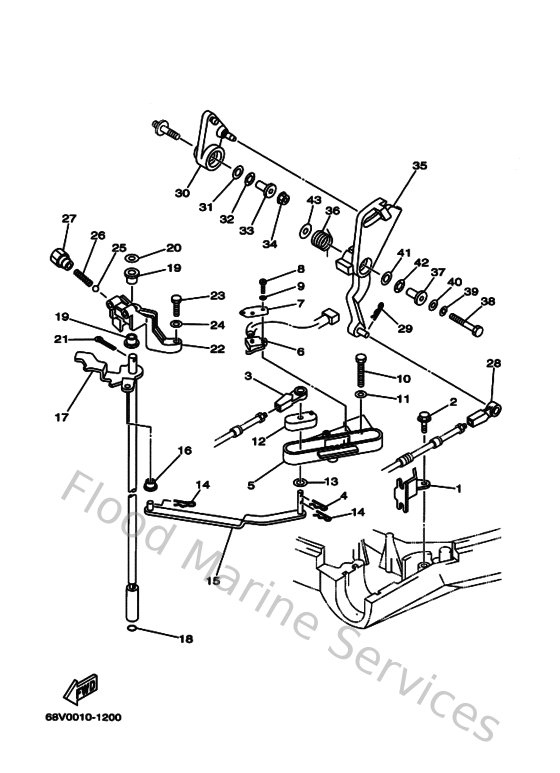

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
67F485380000
Clamp, cable 1
Loading…

↗
2
9010906M8600
Bolt
Loading…

↗
3
663483440000
Cable end, remote control
Loading…

↗
4
904681800800
Clip 620436610000
Loading…

↗
5
68V441170000
Bracket
Loading…

↗
6
68F8259F0000
Switch assembly
Loading…

↗
7
61A825880000
Plate
Loading…

↗
8
978850401600
Screw, panhead (796)
Loading…

↗
9
929900410000
Ybs67-4 washer, spring
Loading…

↗
10
970950604000
Bolt (682)
Loading…

↗
11
929950660000
Washer, plain (646)
Loading…

↗
12
68V441220100
Bushing, shift rod lever
Loading…

↗
13
9020207M0700
Washer, plate (688)
Loading…

↗
15
68V441210000
Lever, shift rod
Loading…

↗
16
9038606M1200
Bushing (688)
Loading…

↗
17
68V441203000
Handle gear shift assembly
Loading…

↗
18
932100916500
O-ring
Loading…

↗
19
9038690M9000
Bush(61a)
Loading…

↗
20
9020109M0200
Washer, plate(61a)
Loading…

↗
21
914902001500
Pin, cotter (648)
Loading…

↗
22
68V441180000
Bracket
Loading…

↗
23
970750602500
Bolt
Loading…

↗
25
9350104M0200
Ball (697)
Loading…

↗
26
905011208200
Spring 6484411600
Loading…

↗
27
648427150000
Bushing 2
Loading…

↗
30
68V421570000
Lever, throttle
Loading…

↗
31
9020110M0200
Washer, plate(6g9)
Loading…

↗
32
9020610M0400
Washer, wave (676)
Loading…

↗
33
9038706M2100
Collar
Loading…

↗
34
9017906M2800
Nut(63v)
Loading…

↗
35
68V421540000
Lever, throttle control
Loading…

↗
36
67F441350000
Spring
Loading…

↗
38
970800603500
Bolt(j52)
Loading…

↗
39
929950610000
Washer(6a1)
Loading…

↗
43
9020106M3100
Washer (6a0)
Loading…

↗
