VX250CETOLXLX (2001)
Control

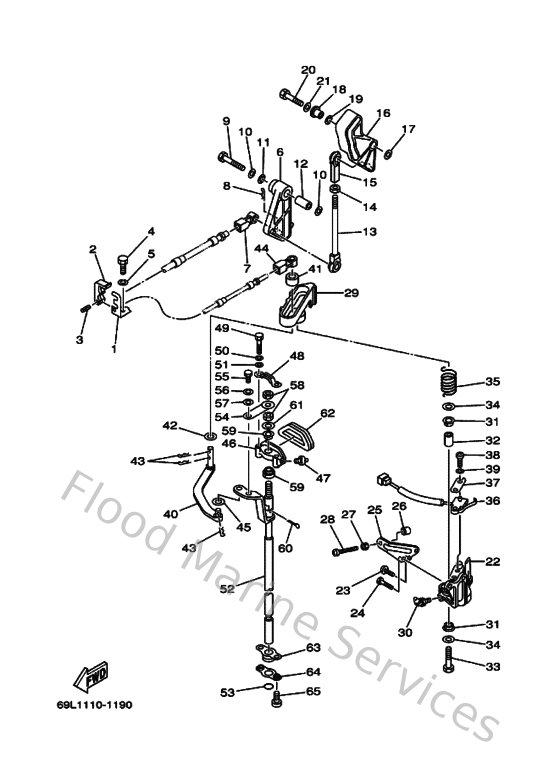

Diagram: Control
Parts List
Reference
Description
Price
1
65L485310000
Bracket Remote Control 1
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001000
Pin, spring (663)
Loading…
↗
4
970950802000
Bolt, hexagon
Loading…
↗
5
929900810000
Ybs67-8 washer, spring
Loading…
↗
6
65L416320000
Lever, Magneto Control
Loading…
↗
7
6E5483440000
Cable end, remote control
Loading…
↗
8
904681800800
Clip 620436610000
Loading…
↗
9
970130804500
Bolt
Loading…
↗
10
929900820000
Ybs66-8 washer, plain
Loading…
↗
11
9020612M0000
Washer, wave (676)
Loading…
↗
12
9038708M1600
Collar
Loading…
↗
13
61A412370000
Joint, link
Loading…
↗
14
953800560000
Nut, hexagon (663)
Loading…
↗
15
682412370000
Joint, link 2
Loading…
↗
16
66K412130000
Cam, Accel
Loading…
↗
17
9020106M3100
Washer (6a0)
Loading…
↗
18
9038706M2900
Coller (6a0)
Loading…
↗
19
9020610M0400
Washer, wave (676)
Loading…
↗
20
970800603000
Bolt(jf7)
Loading…
↗
21
929030660000
Washer, plain (646)
Loading…
↗
22
61A44117011S
Bracket
Loading…
↗
23
979850521200
Screw, with washer(6g7)
Loading…
↗
24
970950602000
Bolt(7u8)
Loading…
↗
25
69L427440000
Stay
Loading…
↗
26
688441940000
Cap
Loading…
↗
27
953800660000
Nut(661)
Loading…
↗
28
9015706M1100
Screw, pan head(697)
Loading…
↗
29
61A44176001S
Bracket
Loading…
↗
30
9370006M0100
Nipple, grease(61a)
Loading…
↗
31
903861206900
Bush(666)
Loading…
↗
32
9038708M0900
Collar(61a)
Loading…
↗
33
970950803500
Bolt(70w)
Loading…
↗
34
929950820000
Ybs66-8 washer, plain
Loading…
↗
35
9050820M3100
Spring, torsion(61a)
Loading…
↗
36
61A8259F0000
Switch assembly
Loading…
↗
37
61A825880000
Plate
Loading…
↗
38
978850401600
Screw, panhead (796)
Loading…
↗
39
929900410000
Ybs67-4 washer, spring
Loading…
↗
40
61A441210000
Lever, shift rod
Loading…
↗
41
6E5441220000
Bushing, shift rod lever
Loading…
↗
42
9020208M2000
Washer, plate (6e5)
Loading…
↗
45
902020600700
Washer plate 626441880000
Loading…
↗
46
61A44118008D
Bracket
Loading…
↗
47
9370006M0300
Nipple, grease(6a1)
Loading…
↗
48
61A441160000
Spring
Loading…
↗
50
929950610000
Washer(6a1)
Loading…
↗
51
929950660000
Washer, plain (646)
Loading…
↗
52
66K441200100
Handle Gear Shift assembly
Loading…
↗
53
932100916500
O-ring
Loading…
↗
54
61A441120000
Stay, handle gear shift
Loading…
↗
55
970800601200
Bolt(gh1)
Loading…
↗
56
929030610000
Washer(6a1)
Loading…
↗
58
953330860000
Nut(6l2)
Loading…
↗
59
9038690M9000
Bush(61a)
Loading…
↗
60
914902001200
Pin, cotter (648)
Loading…
↗
61
9020109M0200
Washer, plate(61a)
Loading…
↗
62
61A153150000
Seal, crankcase
Loading…
↗
63
61A427240000
Grommet
Loading…
↗
64
61A441380000
Washer
Loading…
↗
65
978850600800
Screw, pan head(6a3)
Loading…
↗
