Yamaha Outboard Parts - Control - Z200NETO (2000) | Flood Marine

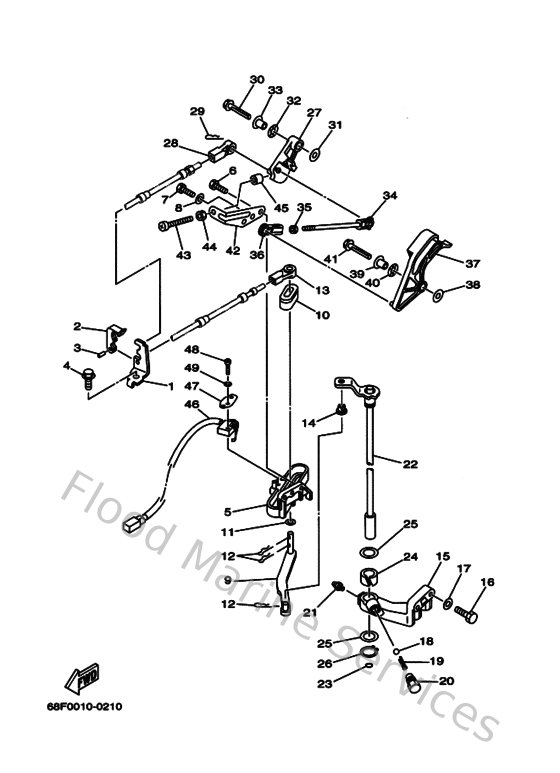

Diagram: Control

Diagram

Parts List

Reference
Description
Price


1
68F485310000
Bracket, Remote Control 1
Loading…

↗
2
663485380000
Clamp, cable 1
Loading…

↗
3
916903001000
Pin, spring (663)
Loading…

↗
4
9010906M8000
Bolt
Loading…

↗
5
68F44117001S
Bracket
Loading…

↗
6
970950602000
Bolt(7u8)
Loading…

↗
7
970800601200
Bolt(gh1)
Loading…

↗
8
929030660000
Washer, plain (646)
Loading…

↗
9
68F441210000
Lever, shift rod
Loading…

↗
10
68F441220000
Bushing, Shift Rod Lever
Loading…

↗
11
9020208M2000
Washer, plate (6e5)
Loading…

↗
12
904681800800
Clip 620436610000
Loading…

↗
13
6E5483440000
Cable end, remote control
Loading…

↗
14
9038606M1200
Bushing (688)
Loading…

↗
15
6E544118011S
Bracket 2
Loading…

↗
16
970130803000
Bolt
Loading…

↗
17
929901010000
Ybs67-10 washer, spring
Loading…

↗
18
9350104M0200
Ball (697)
Loading…

↗
19
905011208200
Spring 6484411600
Loading…

↗
20
648427150000
Bushing 2
Loading…

↗
21
9370006M0300
Nipple, grease(6a1)
Loading…

↗
22
6E5441202300
Handle gear shift assembly
Loading…

↗
23
932100935000
O-ring
Loading…

↗
24
9038616M6600
Bush(6e5)
Loading…

↗
25
902021606100
Washer, plate(663)
Loading…

↗
26
934101600600
Circlip
Loading…

↗
27
67H416320000
Lever, magneto control
Loading…

↗
30
9011906MA400
Bolt, with washer
Loading…

↗
31
9020106M3100
Washer (6a0)
Loading…

↗
32
9020610M0400
Washer, wave (676)
Loading…

↗
33
9038706M2900
Coller (6a0)
Loading…

↗
34
61A412370000
Joint, link
Loading…

↗
35
953800560000
Nut, hexagon (663)
Loading…

↗
36
682412370000
Joint, link 2
Loading…

↗
37
68F412130000
Cam, accel.
Loading…

↗
42
68F427440000
Stay
Loading…

↗
43
9015706M1100
Screw, pan head(697)
Loading…

↗
44
953800660000
Nut(661)
Loading…

↗
45
688441940000
Cap
Loading…

↗
46
68F8259F0000
Switch assembly
Loading…

↗
47
61A825880000
Plate
Loading…

↗
48
978850401600
Screw, panhead (796)
Loading…

↗
49
929950410000
Ybs67-4 washer, spring
Loading…

↗
