F9.9BMH (1996)
Control (FOR USA)

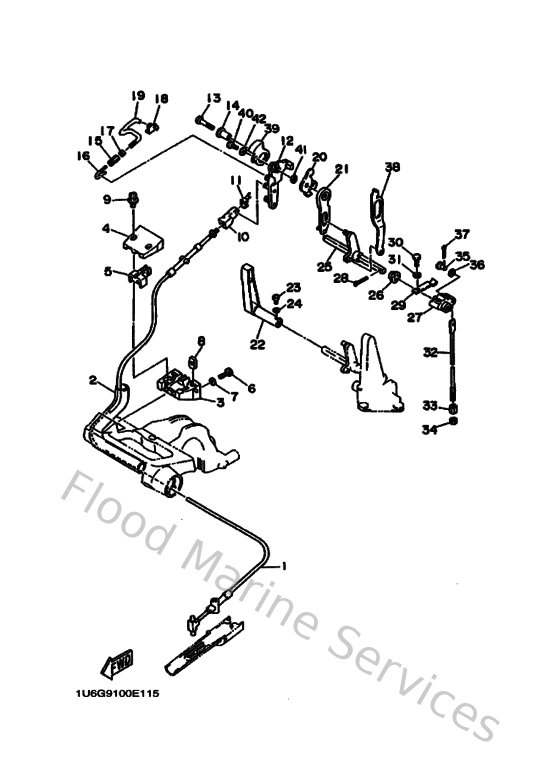

Diagram: Control (FOR USA)
Parts List
Reference
Description
Price
1
6G9483110200
Cable
Loading…
↗
2
9044524M0000
Hose (l165)
Loading…
↗
3
6G8416610098
Bracket 1
Loading…
↗
4
6G8416620098
Bracket 2
Loading…
↗
5
6G8416630000
Bracket 3
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6G8416540000
Nut
Loading…
↗
9
9015905M0600
Screw (6g8)
Loading…
↗
10
6G8263630000
End, wire 1
Loading…
↗
11
6G8263640000
End, wire 2
Loading…
↗
13
970800603000
Bolt(jf7)
Loading…
↗
14
9038706M5800
Collar (6g8)
Loading…
↗
15
6G8412380100
Joint, link
Loading…
↗
16
6G8412410100
Rod, Link
Loading…
↗
17
953030460000
Nut, hexagon (663)
Loading…
↗
18
6G8412370100
Joint, link
Loading…
↗
19
6G8412420100
Rod 2
Loading…
↗
20
6G8144930000
Stay 1
Loading…
↗
22
6G9441110098
Handle Gear Shift
Loading…
↗
23
979850411600
Screw, with washer(61b)
Loading…
↗
24
929900460000
Washer, plain (646)
Loading…
↗
25
6G8441590000
Handle, gear shift 2
Loading…
↗
26
682441320000
Bushing
Loading…
↗
27
682441210100
Lever, shift rod
Loading…
↗
28
914902502000
Pin, cotter
Loading…
↗
29
682441160100
Spring
Loading…
↗
30
970950601400
Bolt(gj3)
Loading…
↗
32
6G9441430000
Rod Shift 1
Loading…
↗
33
61N441460000
Connector, shift rod
Loading…
↗
34
953800670000
Nut
Loading…
↗
35
917900502000
Pin, Clevis
Loading…
↗
36
929900560000
Washer, plain (646)
Loading…
↗
37
914901601000
Pin, cotter
Loading…
↗
38
6G8441241100
Link Shift Rod
Loading…
↗
40
973950601400
Bolt(gj3)
Loading…
↗
41
953800660000
Nut(661)
Loading…
↗
