15DWH (1993)
Control 1

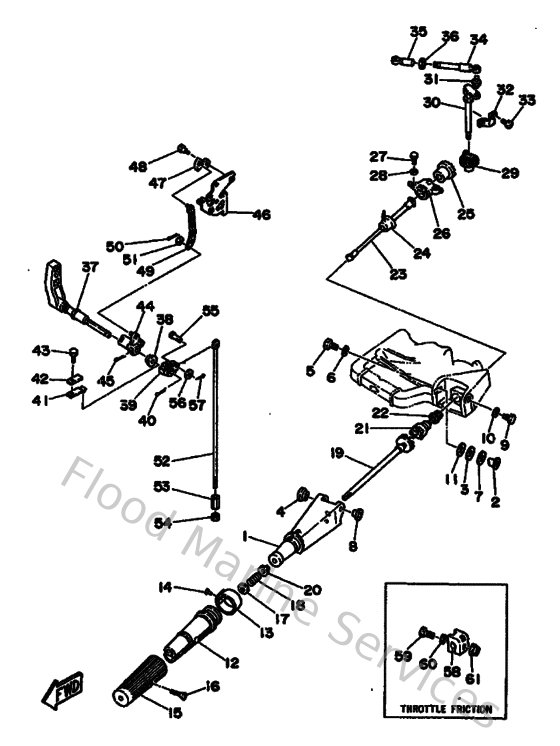

Diagram: Control 1
Parts List
Reference
Description
Price
2
682421230200
Bolt, Handle Joint
Loading…
↗
3
9020612M0600
Washer, wave (682)
Loading…
↗
4
9038612M0700
Bush (682)
Loading…
↗
5
973950602500
Bolt
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
902011218100
Washer Plate 6244218300
Loading…
↗
8
9038606M0600
Bush (682)
Loading…
↗
9
9010908M0100
Bolt (682)
Loading…
↗
10
929900860000
Washer, plain (663)
Loading…
↗
11
902021203100
Washer, plate 6484412600
Loading…
↗
13
6E8421371000
Indicator, Throttle
Loading…
↗
14
9026902M0900
Rivet(6l5)
Loading…
↗
15
6G1421770000
Rubber, handle
Loading…
↗
16
9014905M1300
Screw, countersunk
Loading…
↗
17
929901060000
Washer, plate
Loading…
↗
18
905012321500
Spring (655)
Loading…
↗
19
6E7421410094
Gear, knee 1
Loading…
↗
20
903860803200
Bushing (650)
Loading…
↗
21
682421420100
Gear, knee 2
Loading…
↗
22
9038620M7100
Bush(6M7)
Loading…
↗
23
682421160000
Shaft, steering handle 2
Loading…
↗
24
682427160000
Rubber, Seal 1
Loading…
↗
25
682421510100
Pinion
Loading…
↗
26
682421710200
Bushing
Loading…
↗
27
973130601600
Bolt, hexagon deep recess
Loading…
↗
28
929900620000
Ybs66-6 washer, plain
Loading…
↗
29
682421520100
Gear
Loading…
↗
30
682416310094
Lever, Magneto Control
Loading…
↗
31
663855180000
Joint, ball
Loading…
↗
32
682416610000
Bracket 1
Loading…
↗
33
978900601000
Screw pan head
Loading…
↗
34
682412380100
Joint, link
Loading…
↗
35
682412370000
Joint, link 2
Loading…
↗
36
953800570000
Nut (656)
Loading…
↗
37
682441110194
Handle, gear shift
Loading…
↗
38
682441320000
Bushing
Loading…
↗
39
682441210000
Lever, Shift Rod
Loading…
↗
40
914902502000
Pin, cotter
Loading…
↗
41
682441160000
Spring
Loading…
↗
42
682441170000
Bracket 1
Loading…
↗
43
973950601200
Bolt(gh1)
Loading…
↗
44
682441250100
Lever, Shift Rod
Loading…
↗
46
682441180100
Bracket
Loading…
↗
48
9010906MA100
Bolt
Loading…
↗
50
914902001000
Pin, cotter
Loading…
↗
51
929900560000
Washer, plain (646)
Loading…
↗
52
682441430000
Rod, Shift
Loading…
↗
53
901700601500
Connector, shift rod
Loading…
↗
54
953800670000
Nut
Loading…
↗
55
917900502000
Pin, Clevis
Loading…
↗
57
914901601000
Pin, cotter
Loading…
↗
58
656421260100
Piece, friction
Loading…
↗
59
973950602000
Bolt(7u8)
Loading…
↗
61
901850606200
Nut selflocking (656)
Loading…
↗
