Yamaha Outboard Parts - Control 1 - 15FWH (1997) | Flood Marine
New Search
Parts
New Outboards
Home
15FWH (1997)
Control 1

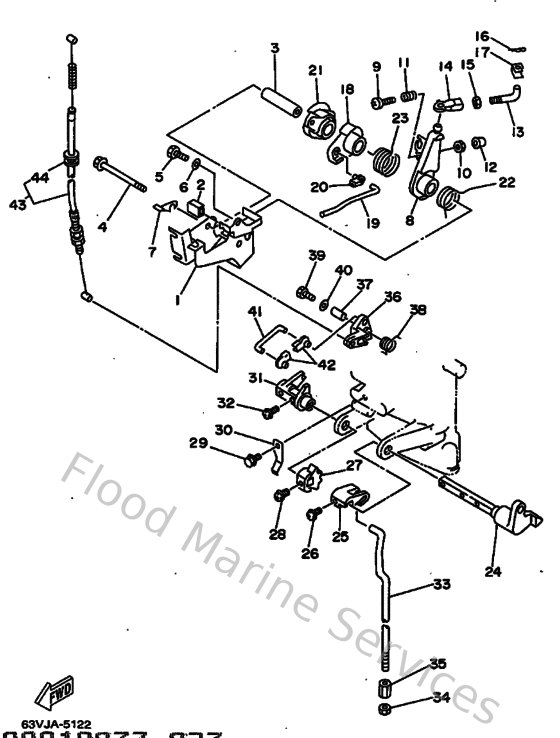

Diagram: Control 1
Parts List
Reference
Description
Price
1
63V144970000
Stay, throttle wire
Loading…
↗
2
689441940000
Cap
Loading…
↗
3
9038706M5000
Collar(63v)
Loading…
↗
4
958950606500
Bolt, flange(63v)
Loading…
↗
5
970950601200
Bolt(gh1)
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
63V412820000
Stopper, free accel. link
Loading…
↗
8
63V416310000
Lever, magneto control
Loading…
↗
9
978850603000
Screw, pan head(6e0)
Loading…
↗
10
953800660000
Nut(661)
Loading…
↗
11
9050112M1600
Spring (6a1)
Loading…
↗
12
688441940000
Cap
Loading…
↗
13
63V412380000
Joint, link
Loading…
↗
14
6H4412370000
Joint, link
Loading…
↗
15
953800570000
Nut (656)
Loading…
↗
16
904681000500
Pin, hair 6264123500
Loading…
↗
17
63V412230000
Washer, lock 1
Loading…
↗
18
63V412830000
Lever, free accel.
Loading…
↗
19
63V412110000
Link, accel.
Loading…
↗
20
661412620200
Joint, choke lever
Loading…
↗
21
63V416380000
Pulley
Loading…
↗
22
9050816M3700
Spring, torsion(63v)
Loading…
↗
23
9050820M3800
Spring, torsion(63v)
Loading…
↗
24
63V441230100
Arm, shift rod
Loading…
↗
25
63V441210100
Lever, shift rod
Loading…
↗
26
979850521200
Screw, with washer(6g7)
Loading…
↗
27
63V441250000
Lever, shift rod
Loading…
↗
28
9015905M2500
Screw,pan head (646)
Loading…
↗
29
975950651200
Bolt, hexagon w/w deep recess
Loading…
↗
30
63V441160000
Spring
Loading…
↗
31
63V441220000
Bushing, shift rod lever
Loading…
↗
33
63V441430100
Rod, shift
Loading…
↗
34
9538R0670000
Nut
Loading…
↗
35
901700601500
Connector, shift rod
Loading…
↗
36
63V157461000
Arm
Loading…
↗
37
9038706M0600
Collar (651)
Loading…
↗
38
9050808M3900
Spring, torsion(63v)
Loading…
↗
39
970800602000
Bolt(7u8)
Loading…
↗
41
6L2157470000
Link
Loading…
↗
43
63V157700000
Cable comp., starter stop
Loading…
↗
44
9048010M1600
Grommet(6j8)
Loading…
↗
