30HMH (2001)
Control 1

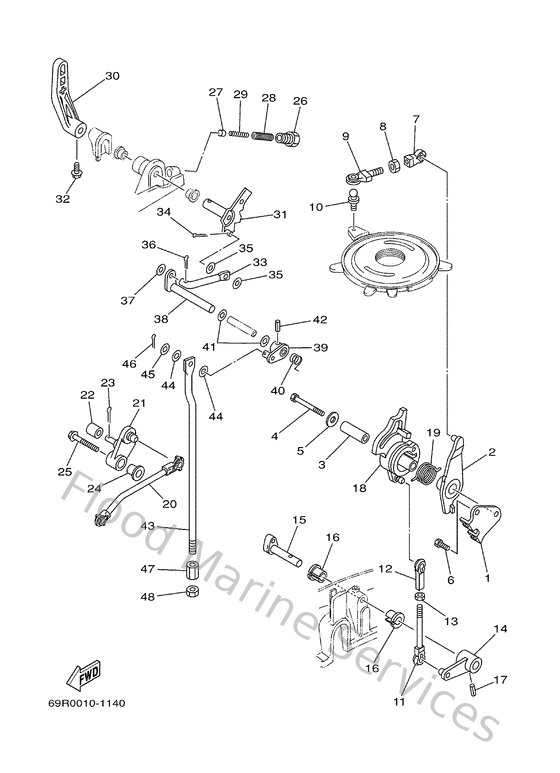

Diagram: Control 1
Parts List
Reference
Description
Price
1
69P144970000
Stay, throttle wire
Loading…
↗
2
69P416310000
Lever, magneto control
Loading…
↗
3
9038706M5900
Collar (6h3)
Loading…
↗
4
970950604500
Bolt, hexagon
Loading…
↗
5
902010641600
Washer, plate(663)
Loading…
↗
6
970800601200
Bolt(gh1)
Loading…
↗
7
662412370100
Joint, link
Loading…
↗
8
953800570000
Nut (656)
Loading…
↗
9
679412410100
Rod, link
Loading…
↗
10
663855180000
Joint, ball
Loading…
↗
11
682412380100
Joint, link
Loading…
↗
12
682412370000
Joint, link 2
Loading…
↗
13
953800560000
Nut, hexagon (663)
Loading…
↗
14
69P421570094
Lever, throttle
Loading…
↗
15
656421530094
Shaft, throttle control
Loading…
↗
16
903861000900
Bushing 6484418600
Loading…
↗
17
916904001800
Pin spring(664)
Loading…
↗
18
69P412130000
Cam, accel.
Loading…
↗
19
69P421670000
Spring 1
Loading…
↗
20
69P412410000
Rod, link
Loading…
↗
21
69P421540000
Lever, throttle control
Loading…
↗
22
62Y421710000
Bushing
Loading…
↗
23
914901601000
Pin, cotter
Loading…
↗
24
9038706M6000
Collar (6h3)
Loading…
↗
25
9011906M4900
Bolt, with washer
Loading…
↗
26
664427150000
Bushing 2
Loading…
↗
27
664441670000
Plunger, shift cam
Loading…
↗
28
9050114M0700
Spring, compresion (664)
Loading…
↗
29
9050109M0800
Spring, compresion (664)
Loading…
↗
30
68944111018D
Handle, gear shift
Loading…
↗
31
664441130100
Cam plate, handle
Loading…
↗
32
9010506M0700
Bolt (689)
Loading…
↗
33
664441420000
Joint
Loading…
↗
35
902020600700
Washer plate 626441880000
Loading…
↗
36
914901201200
Pin, cotter (6g8)
Loading…
↗
37
929900560000
Washer, plain (646)
Loading…
↗
38
689441210100
Lever, shift rod 1
Loading…
↗
39
689441250000
Lever, shift rod 2
Loading…
↗
40
9050814M1300
Spring (689)
Loading…
↗
41
902021002400
Washer plate 648441880000
Loading…
↗
42
916904001600
Pin, spring (648)
Loading…
↗
43
69S441430000
Rod, shift
Loading…
↗
46
914902001000
Pin, cotter
Loading…
↗
47
61N441460000
Connector, shift rod
Loading…
↗
48
953800660000
Nut(661)
Loading…
↗
