9.9DMH (1988)
Control 1

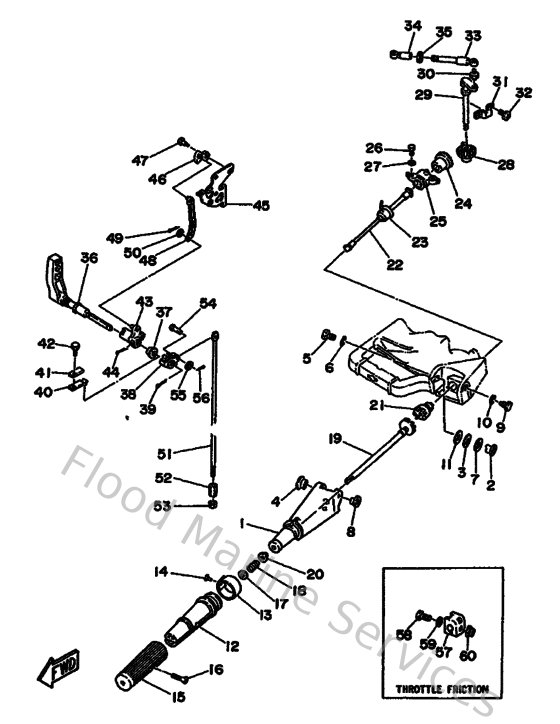

Diagram: Control 1
Parts List
Reference
Description
Price
2
682421230100
Bolt, Handle Joint
Loading…
↗
3
9020612M0600
Washer, wave (682)
Loading…
↗
4
9038612M0700
Bush (682)
Loading…
↗
5
973130602500
Bolt
Loading…
↗
6
929900660000
Washer, plain (646)
Loading…
↗
7
902011218100
Washer Plate 6244218300
Loading…
↗
8
9038606M0600
Bush (682)
Loading…
↗
9
9010908M0100
Bolt (682)
Loading…
↗
10
929900860000
Washer, plain (663)
Loading…
↗
11
902021203100
Washer, plate 6484412600
Loading…
↗
12
664421190000
Grip, steering handle
Loading…
↗
13
6E0421370000
Indicator, throttle
Loading…
↗
14
902690200100
Rivet(6l5)
Loading…
↗
15
6G1421770000
Rubber, handle
Loading…
↗
16
987800552500
Ybs53-525 screw,flat head
Loading…
↗
17
929901060000
Washer, plate
Loading…
↗
18
905012321500
Spring (655)
Loading…
↗
19
682421410194
Gear, Knee 1
Loading…
↗
20
903860803200
Bushing (650)
Loading…
↗
21
682421420100
Gear, knee 2
Loading…
↗
22
682421160000
Shaft, steering handle 2
Loading…
↗
23
682427160000
Rubber, Seal 1
Loading…
↗
24
682421510100
Pinion
Loading…
↗
25
682421710200
Bushing
Loading…
↗
26
973130601600
Bolt, hexagon deep recess
Loading…
↗
27
929900620000
Ybs66-6 washer, plain
Loading…
↗
28
682421520100
Gear
Loading…
↗
29
682416310094
Lever, Magneto Control
Loading…
↗
30
663855180000
Joint, ball
Loading…
↗
31
682416610000
Bracket 1
Loading…
↗
32
978030601000
Screw pan head
Loading…
↗
33
682412380000
Joint, link
Loading…
↗
34
682412370000
Joint, link 2
Loading…
↗
35
953030570000
Nut (656)
Loading…
↗
36
682441110194
Handle, gear shift
Loading…
↗
37
682441320000
Bushing
Loading…
↗
38
999990382000
Lever, Shift Rod
Loading…
↗
39
914902502000
Pin, cotter
Loading…
↗
40
682441160000
Spring
Loading…
↗
41
682441170000
Bracket 1
Loading…
↗
42
973130601200
Bolt(gh1)
Loading…
↗
43
682441250100
Lever, Shift Rod
Loading…
↗
45
682441180100
Bracket
Loading…
↗
47
9010906M0400
Bolt
Loading…
↗
49
914902001000
Pin, cotter
Loading…
↗
50
929900560000
Washer, plain (646)
Loading…
↗
51
682441430000
Rod, Shift
Loading…
↗
52
901700601500
Connector, shift rod
Loading…
↗
53
9538R0670000
Nut
Loading…
↗
54
917900502000
Pin, Clevis
Loading…
↗
56
914901601000
Pin, cotter
Loading…
↗
57
656421260100
Piece, friction
Loading…
↗
58
973950602000
Bolt(7u8)
Loading…
↗
60
901850606200
Nut selflocking (656)
Loading…
↗
