15FWH (1997)
Control 2

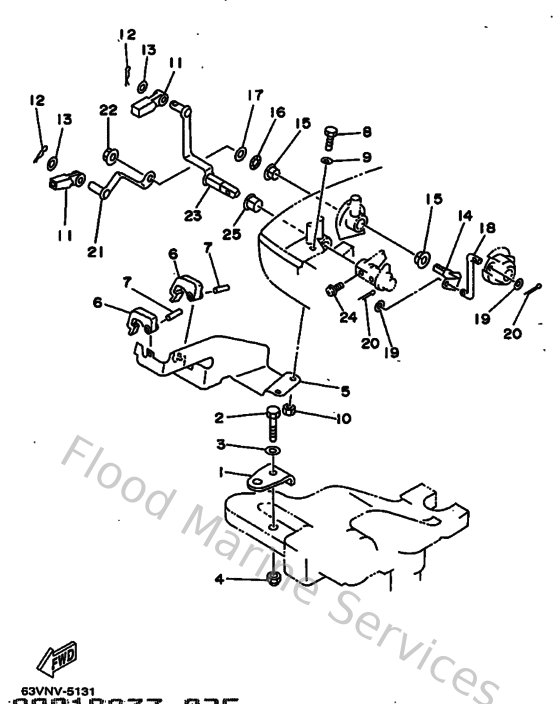

Diagram: Control 2
Parts List
Reference
Description
Price
1
63V485110100
Hook, steering
Loading…
↗
2
970750803500
Bolt(70w)
Loading…
↗
3
929950860000
Washer, plain (663)
Loading…
↗
4
957800830000
Nut, nylon (6j8)
Loading…
↗
5
63V485310000
Bracket, remote control 1
Loading…
↗
6
682485385000
Clamp, cable
Loading…
↗
7
916903001200
Pin, spring
Loading…
↗
8
970950601600
Bolt, hexagon deep recess
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
953800660000
Nut(661)
Loading…
↗
11
663483440000
Cable end, remote control
Loading…
↗
12
904681800800
Clip 620436610000
Loading…
↗
13
9020108M1200
Washer plate (682)
Loading…
↗
14
63V421540000
Lever, throttle control
Loading…
↗
15
903861002500
Bushing (658)
Loading…
↗
16
9020610M0400
Washer, wave (676)
Loading…
↗
17
9020110M0200
Washer, plate(6g9)
Loading…
↗
18
63V421920000
Rod 2
Loading…
↗
19
9020104M0600
Washer, plate(26h)
Loading…
↗
20
914902001000
Pin, cotter
Loading…
↗
21
63V485340000
Throttle lever, control
Loading…
↗
23
63V485440000
Lever, shiftcontrol
Loading…
↗
24
9015905M2500
Screw,pan head (646)
Loading…
↗
25
903861000900
Bushing 6484418600
Loading…
↗
