30DEO (2001)
Control 2

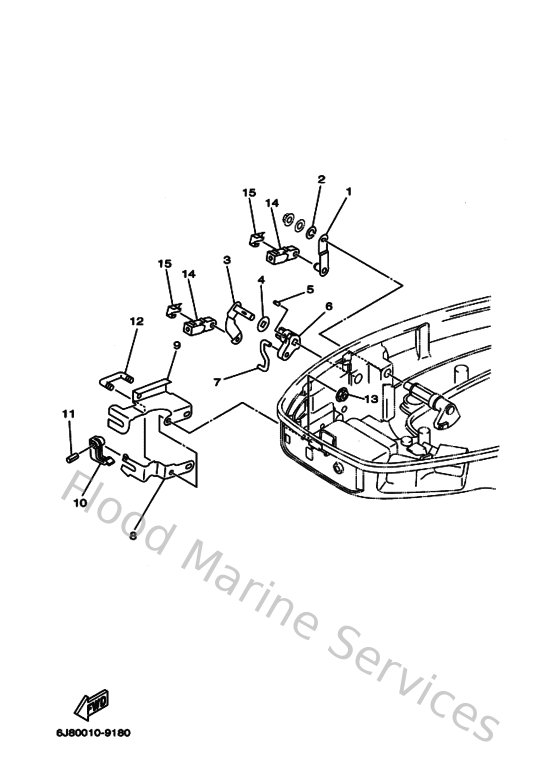

Diagram: Control 2
Parts List
Reference
Description
Price
1
6J8485340000
Throttle lever, control
Loading…
↗
2
929900810000
Ybs67-8 washer, spring
Loading…
↗
3
6J8485440100
Lever, shiftcontrol
Loading…
↗
4
6J8441770000
Washer
Loading…
↗
5
9025403M0300
Pin, spring
Loading…
↗
6
6J8441730200
Lever, shift control
Loading…
↗
7
6J8421690100
Joint
Loading…
↗
8
6J8485310000
Bracket, remote control
Loading…
↗
9
6J8485320000
Bracket, remote control 2
Loading…
↗
10
682485385000
Clamp, cable
Loading…
↗
11
916903001200
Pin, spring
Loading…
↗
12
9010906M2900
Bolt(6j8)
Loading…
↗
13
9017906M2400
Nut(6j8)
Loading…
↗
14
6G8263630000
End, wire 1
Loading…
↗
15
6G8263640000
End, wire 2
Loading…
↗
