Yamaha Outboard Parts - Controle - 15FMC (1999) | Flood Marine

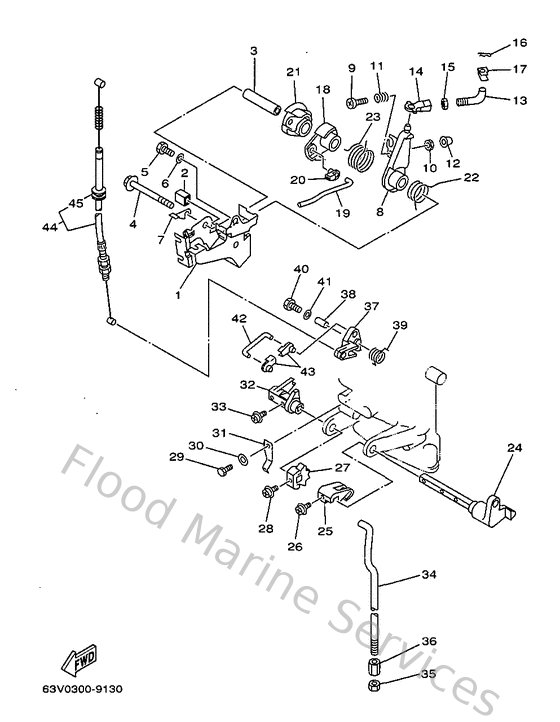

Diagram: Controle

Diagram

Parts List

Reference
Description
Price


1
63V144970100
Stay, Throttle Wire
Loading…

↗
2
689441940000
Cap
Loading…

↗
3
9038706M5000
Collar(63v)
Loading…

↗
4
958950606500
Bolt, flange(63v)
Loading…

↗
5
970950601200
Bolt(gh1)
Loading…

↗
6
929900660000
Washer, plain (646)
Loading…

↗
7
63V412820000
Stopper, free accel. link
Loading…

↗
8
63V416310000
Lever, magneto control
Loading…

↗
9
978850603000
Screw, pan head(6e0)
Loading…

↗
10
953800660000
Nut(661)
Loading…

↗
11
9050112M1600
Spring (6a1)
Loading…

↗
12
688441940000
Cap
Loading…

↗
13
63V412380000
Joint, link
Loading…

↗
14
6H4412370000
Joint, link
Loading…

↗
15
953800570000
Nut (656)
Loading…

↗
16
904681000500
Pin, hair 6264123500
Loading…

↗
17
63V412230000
Washer, lock 1
Loading…

↗
18
63V412830100
Lever, free accel.
Loading…

↗
19
63V412110000
Link, accel.
Loading…

↗
20
661412620200
Joint, choke lever
Loading…

↗
21
63V416380000
Pulley
Loading…

↗
22
9050816M3700
Spring, torsion(63v)
Loading…

↗
23
9050820M3800
Spring, torsion(63v)
Loading…

↗
25
63V441210100
Lever, shift rod
Loading…

↗
26
979850521200
Screw, with washer(6g7)
Loading…

↗
27
63V441250000
Lever, shift rod
Loading…

↗
28
9015905M2500
Screw,pan head (646)
Loading…

↗
31
63V441160000
Spring
Loading…

↗
32
63V441220000
Bushing, shift rod lever
Loading…

↗
34
63V441430100
Rod, shift
Loading…

↗
35
953800670000
Nut
Loading…

↗
36
901700601500
Connector, shift rod
Loading…

↗
37
63V157461000
Arm
Loading…

↗
38
9038706M0600
Collar (651)
Loading…

↗
39
9050808M3900
Spring, torsion(63v)
Loading…

↗
40
970800602000
Bolt(7u8)
Loading…

↗
41
929950660000
Washer, plain (646)
Loading…

↗
42
6L2157470000
Link
Loading…

↗
44
63V157700000
Cable comp., starter stop
Loading…

↗
