225BETOL (1995)
Controller 1

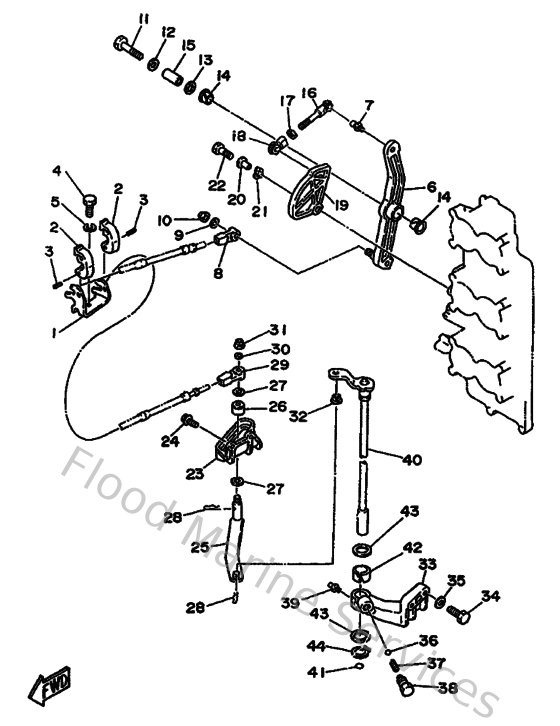

Diagram: Controller 1
Parts List
Reference
Description
Price
1
6E5485310000
Bracket, remote control
Loading…
↗
2
6E5485380000
Clamp, cable
Loading…
↗
6
6K7416320094
Lever, Magneto Control (6K7-41632-01-94)
Loading…
↗
7
663855180000
Joint, ball
Loading…
↗
8
6E5483440000
Cable end, remote control
Loading…
↗
16
6K7412110000
Link, accel.
Loading…
↗
18
6H1412370000
Joint, link
Loading…
↗
23
6E5441170094
Bracket
Loading…
↗
25
999990396600
Lever, Shift Rod
Loading…
↗
26
6E5441220000
Bushing, shift rod lever
Loading…
↗
33
6E5441180194
Bracket 2
Loading…
↗
38
648427150000
Bushing 2
Loading…
↗
40
6E5441200300
Handle gear shift assembly
Loading…
↗
