Yamaha Outboard Parts - Controller 1 - 8CMH (1998) | Flood Marine

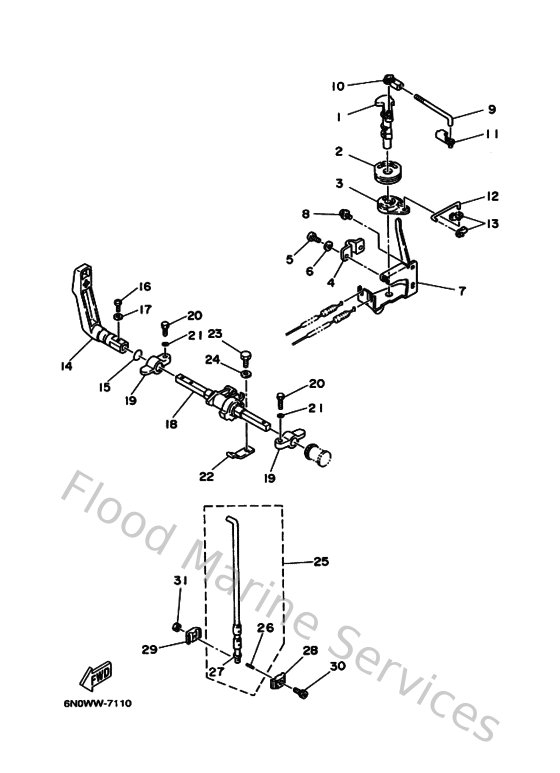

Diagram: Controller 1

Diagram

Parts List

Reference
Description
Price


1
6G1416310000
Lever, magneto control
Loading…

↗
2
6G1416380000
Pulley
Loading…

↗
3
6G1412830100
Lever, free accel 1
Loading…

↗
4
6G1416610000
Bracket 1
Loading…

↗
5
978850501000
Screw, pan head(62x)
Loading…

↗
6
929900510000
Ybs67-5 washer, spring
Loading…

↗
7
6G1144978000
Stay, throttle wire
Loading…

↗
8
958950601000
Bolt, flange(7ht)
Loading…

↗
9
6G1412380000
Joint, link
Loading…

↗
10
662412370100
Joint, link
Loading…

↗
11
6E9412370000
Joint, link
Loading…

↗
12
6G1412110000
Link, accel
Loading…

↗
13
661412620200
Joint, choke lever
Loading…

↗
14
6N0G41110000
Handle, gear shift
Loading…

↗
15
932101232700
O-ring(3ld)
Loading…

↗
16
978850501600
Screw, pan head(6b0)
Loading…

↗
17
929900560000
Washer, plain (646)
Loading…

↗
18
6G1441210294
Lever, shift rod
Loading…

↗
19
6G1416620194
Bracket
Loading…

↗
20
970800602000
Bolt(7u8)
Loading…

↗
21
929950660000
Washer, plain (646)
Loading…

↗
22
6G1441160100
Spring
Loading…

↗
23
970800601200
Bolt(gh1)
Loading…

↗
25
6N0G41100000
Shift rod assembly
Loading…

↗
26
916902001000
Pin, spring
Loading…

↗
28
6N0G41451000
Connecter 1
Loading…

↗
29
6N0G41460000
Connecter 2
Loading…

↗
30
9010906M1700
Bolt (6g1)
Loading…

↗
31
953800660000
Nut(661)
Loading…

↗
