90AETOL (1998)
Controller 1

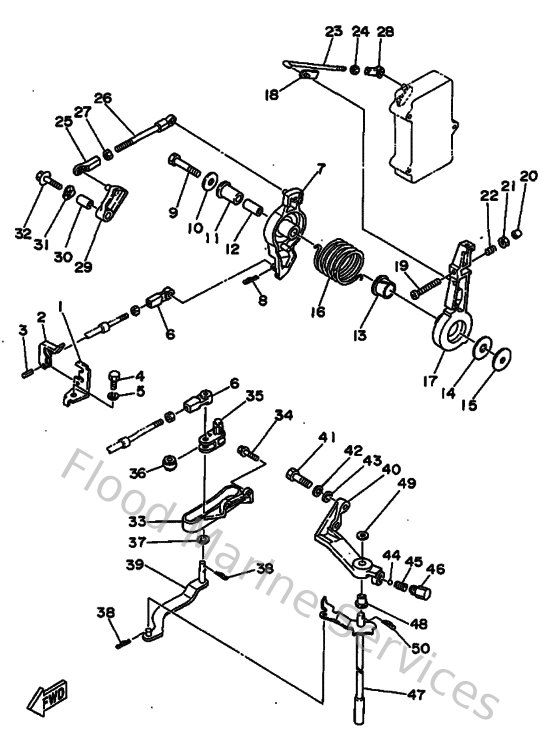

Diagram: Controller 1
Parts List
Reference
Description
Price
1
663485310000
Bracket, remote control
Loading…
↗
2
663485380000
Clamp, cable 1
Loading…
↗
3
916903001200
Pin, spring
Loading…
↗
4
970950801600
Bolt, hexagon deep recess
Loading…
↗
5
929950810000
Ybs67-8 washer, spring
Loading…
↗
6
6FM483440000
Cable end, remote control
Loading…
↗
7
688416320194
Lever, magneto control
Loading…
↗
8
904681800800
Clip 620436610000
Loading…
↗
9
970950804500
Bolt, hexagon
Loading…
↗
10
9020108M5400
Washer, plate (6e5)
Loading…
↗
11
903861208900
Bushing(663)
Loading…
↗
12
9038708M1600
Collar
Loading…
↗
13
9038622M1300
Bushing (688)
Loading…
↗
14
902021209200
Washer, plate(663)
Loading…
↗
15
9020108M1300
Washer plate (682)
Loading…
↗
16
9050829M0500
Spring, torsion (688)
Loading…
↗
17
68841631011S
Lever, magneto control
Loading…
↗
18
6F5412370000
Joint, link
Loading…
↗
19
9015706M1100
Screw, pan head(697)
Loading…
↗
20
688441940000
Cap
Loading…
↗
21
953800660000
Nut(661)
Loading…
↗
22
9050116M1200
Spring, compression (688)
Loading…
↗
23
6H1416360000
Rod, magneto control
Loading…
↗
24
953800560000
Nut, hexagon (663)
Loading…
↗
25
6H1412370000
Joint, link
Loading…
↗
26
688412110100
Link, accel
Loading…
↗
28
682412370000
Joint, link 2
Loading…
↗
29
6H1412130000
Cam, Accel
Loading…
↗
30
9038706M1700
Collar, lever 1
Loading…
↗
31
9020610M0400
Washer, wave (676)
Loading…
↗
32
9011906M2400
Bolt, with washer
Loading…
↗
33
688441170094
Bracket 1
Loading…
↗
34
975950652000
Bolt(7u8)
Loading…
↗
35
688441240000
Link, shift rod
Loading…
↗
36
688441220000
Bushing, shift rod lever
Loading…
↗
37
9020207M0700
Washer, plate (688)
Loading…
↗
39
6H1441210000
Lever, shift rod 1
Loading…
↗
40
688441180094
Bracket
Loading…
↗
41
970130803000
Bolt
Loading…
↗
42
929900810000
Ybs67-8 washer, spring
Loading…
↗
43
929900860000
Washer, plain (663)
Loading…
↗
44
9350104M0200
Ball (697)
Loading…
↗
45
905011208200
Spring 6484411600
Loading…
↗
46
648427150000
Bushing 2
Loading…
↗
47
6H1441201200
Handle gear shift assembly
Loading…
↗
48
9038607M5800
Bush(6h1)
Loading…
↗
49
929900820000
Ybs66-8 washer, plain
Loading…
↗
