E8DMH (1997)
Cowling

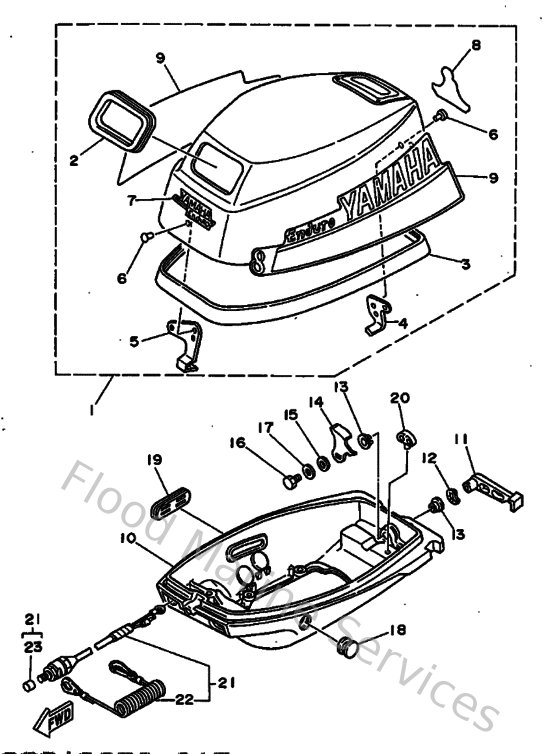

Diagram: Cowling
Parts List
Reference
Description
Price
2
677157610100
Seal 1
Loading…
↗
3
6G1426150000
Seal
Loading…
↗
4
677426470000
Holder, clamp band
Loading…
↗
5
677426510200
Hook
Loading…
↗
6
9026604M0400
Rivet(6e7)
Loading…
↗
9
677W0070H000
Graphic Set
Loading…
↗
10
67742711034D
Cowling, Bottom
Loading…
↗
11
67742815004D
Lever, clamp
Loading…
↗
12
902061205200
Washer, wave (666)
Loading…
↗
13
903861206900
Bush(666)
Loading…
↗
14
689428160000
Lever, clamp 2
Loading…
↗
16
970950601200
Bolt(gh1)
Loading…
↗
17
929900660000
Washer, plain (646)
Loading…
↗
18
677427240000
Grommet
Loading…
↗
19
677427250000
Grommet 2
Loading…
↗
20
606425910000
Holder, shear pin
Loading…
↗
21
677825752000
Engine stop switch assembly
Loading…
↗
22
682825560000
Lanyard, stop switch
Loading…
↗
23
6898257Y0000
Cap
Loading…
↗
