3AMH (1989)
Cowling & Fuel

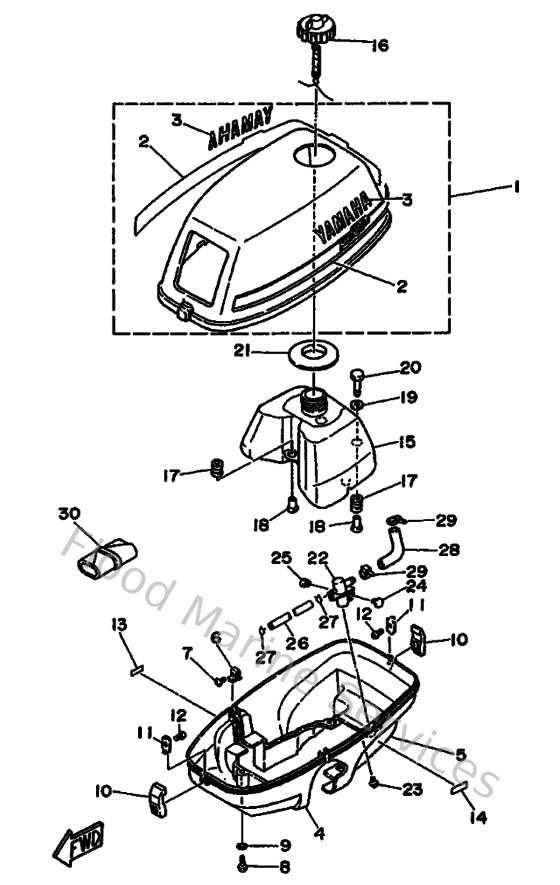

Diagram: Cowling & Fuel
Parts List
Reference
Description
Price
6
6L5427740000
Stay, apron 1
Loading…
↗
7
985800501000
Screw, pan head(62x)
Loading…
↗
8
970950601600
Bolt, hexagon deep recess
Loading…
↗
9
929900660000
Washer, plain (646)
Loading…
↗
10
6L5426470000
Holder, clamp band
Loading…
↗
11
6L5428230000
Plate, stop
Loading…
↗
12
9016703M0200
Screw, tapping(6l5)
Loading…
↗
14
6L5245910000
Emblem, Fuel Cock
Loading…
↗
15
6L5241110000
Tank, fuel
Loading…
↗
16
6L5246102000
Cap assembly
Loading…
↗
17
6A0823170000
Damper, ignition coil
Loading…
↗
18
624425420000
Collar
Loading…
↗
19
9020106M0800
Washer, plate(6e3)
Loading…
↗
20
973130603000
Bolt
Loading…
↗
21
6L5246410000
Gasket, cap 1
Loading…
↗
22
6L5245006000
Fuel cock assembly 1
Loading…
↗
23
9015906M1000
Screw, with washer(6l5)
Loading…
↗
24
6L5441962000
Indicator 3
Loading…
↗
25
6L5441972000
Indicator 4
Loading…
↗
26
6A4243120000
Pipe, fuel 2
Loading…
↗
27
904670800400
Clip, pipe 6162435600
Loading…
↗
28
6L5243120000
Pipe 2
Loading…
↗
29
9046513M1100
Clamp (6e5)
Loading…
↗
30
656W28100100
Tool kit
Loading…
↗
