5CMH (1986)
Cowling & Fuel

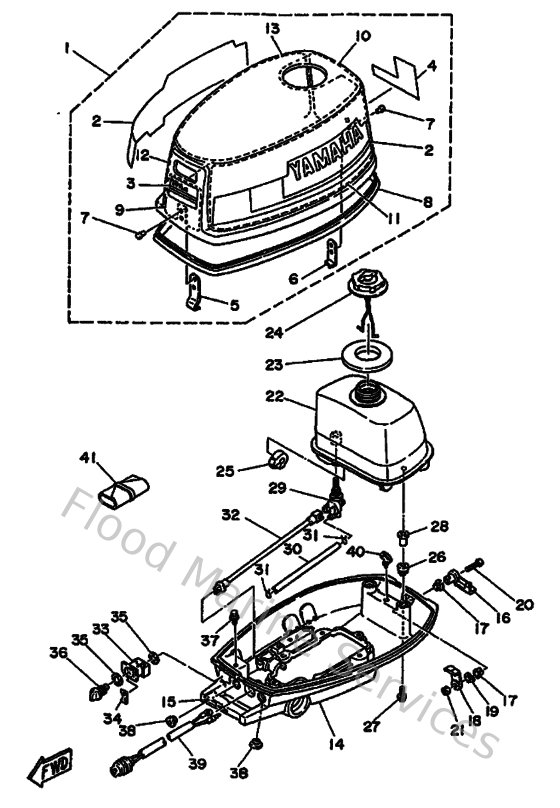

Diagram: Cowling & Fuel
Parts List
Reference
Description
Price
3
6E0426770100
Graphic Front
Loading…
↗
4
6E3426782000
Graphic, Rear
Loading…
↗
5
6E0426510000
Hook
Loading…
↗
6
6E0426470100
Holder, clamp band
Loading…
↗
7
9026604M0000
Rivet 2 (662)
Loading…
↗
8
6E0426150000
Seal
Loading…
↗
9
6E3426628000
Damper
Loading…
↗
10
6E3426638000
Damper
Loading…
↗
11
689W42662000
Damper, Form
Loading…
↗
12
6E3426668000
Damper
Loading…
↗
15
6A1427920100
Mark (100:1)
Loading…
↗
16
6E04281500EJ
Lever Clamp 1
Loading…
↗
17
903861206900
Bush(666)
Loading…
↗
18
6E0428160000
Lever, clamp
Loading…
↗
19
902061205200
Washer, wave (666)
Loading…
↗
20
978900603000
Screw, pan head(6e0)
Loading…
↗
21
953800670000
Nut
Loading…
↗
22
6E02411000EJ
Fuel Tank Comp
Loading…
↗
23
6E3246410000
Gasket, cap
Loading…
↗
24
6E0246100100
Cap assembly
Loading…
↗
25
6E0241810000
Damper, locating 1
Loading…
↗
26
6E3241820000
Damper, locating 2
Loading…
↗
27
958950602500
Bolt, flange deep recess
Loading…
↗
28
6E0425420000
Pipe 1
Loading…
↗
30
9044509M3700
Hose (l1500)
Loading…
↗
31
904670800400
Clip, pipe 6162435600
Loading…
↗
32
6E0245720000
Shaft, fuel change
Loading…
↗
33
6E0245710000
Bushing
Loading…
↗
35
9020212M1700
Washer, plate (6e0)
Loading…
↗
36
6E0245750100
Lever, fuel change
Loading…
↗
37
9010506M1500
Bolt (6e0)
Loading…
↗
38
9048014M1400
Grommet (6e0)
Loading…
↗
39
6A0825500100
Stop switch assembly
Loading…
↗
40
606425910000
Holder, shear pin
Loading…
↗
41
6E0281000000
Tool kit
Loading…
↗
42
656W28100200
Tool kit
Loading…
↗
