200AETOL (1996)
Crankshaft & Piston

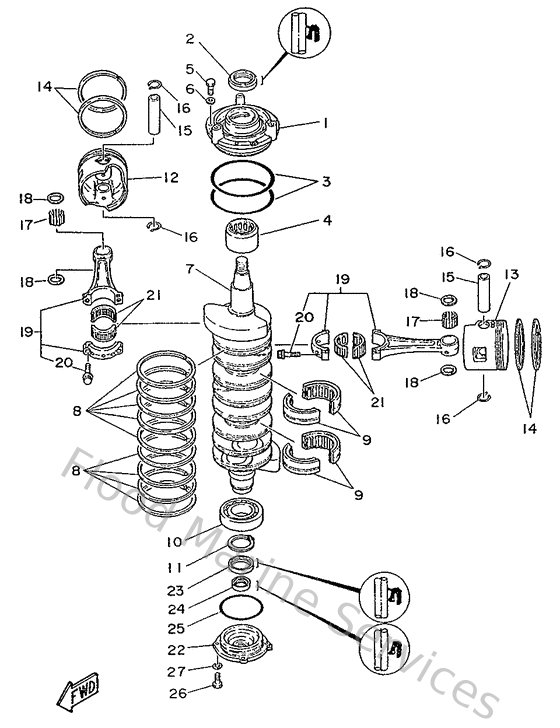

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6E5151630094
Housing, bearing 1
Loading…
↗
2
9310240M1400
Oil seal(61a)
Loading…
↗
3
9321104M3600
O-ring (705)
Loading…
↗
4
93311940U300
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
973130602000
Bolt(7u8)
Loading…
↗
6
929030660000
Washer, plain (646)
Loading…
↗
7
6G5114110200
Crankshaft
Loading…
↗
8
6E5114470000
Seal, ring
Loading…
↗
9
93310954V300
Bearing, cylindrical(64c)
Loading…
↗
10
93306208U000
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
990094040000
Circlip(n02)
Loading…
↗
12
6G5116310093
Piston Std (Std)
Loading…
↗
13
6G5116450000
Piston 2 (0.25Mm O/s)
Loading…
↗
14
6E5116101300
Piston Ring Set (1St O/S)
Loading…
↗
15
6E5116330100
Pin Piston
Loading…
↗
16
6E5116340000
Clip, piston pin
Loading…
↗
17
936032111100
Pin, dowel(663)
Loading…
↗
18
9020121M7500
Washer, plate (6f3)
Loading…
↗
19
6E5116500100
Rod, connecting assembly
Loading…
↗
20
901090846200
Bolt
Loading…
↗
21
93310836V200
Brg, cyl-cal roller (6e5)
Loading…
↗
22
6G5153590094
Housing, oil seal
Loading…
↗
23
9310235M1300
Oil seal (6e5)
Loading…
↗
24
9310122M1500
Oil seal (6e5)
Loading…
↗
25
9321074M3500
O-ring (6e5)
Loading…
↗
26
973950602000
Bolt(7u8)
Loading…
↗
27
929900660000
Washer, plain (646)
