200JETOL (2001)
Crankshaft & Piston

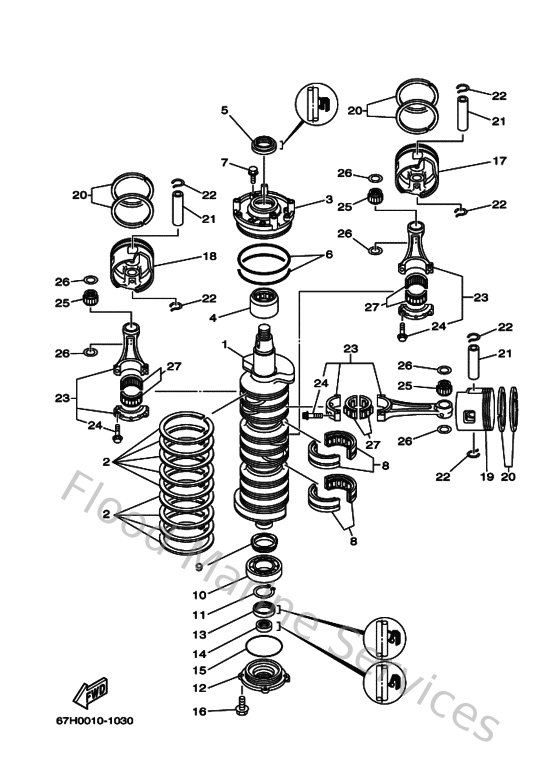

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
67H114110000
Crankshaft
Loading…
↗
2
6E5114470000
Seal, ring
Loading…
↗
3
67H15163001S
Housing, Bearing 1
Loading…
↗
4
93311940U300
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
9310240M3800
Oil seal(61a)
Loading…
↗
6
932110400100
O-ring
Loading…
↗
7
9011906MA300
Bolt, with washer
Loading…
↗
8
93310954U100
Bearing, cylindrical(64c)
Loading…
↗
9
6R3115360000
Gear, drive
Loading…
↗
10
93306208U000
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
9341040M0300
Circlip(n02)
Loading…
↗
12
6G5153590094
Housing, oil seal
Loading…
↗
13
9310235M1300
Oil seal (6e5)
Loading…
↗
14
9310122M1500
Oil seal (6e5)
Loading…
↗
15
9321074M3500
O-ring (6e5)
Loading…
↗
16
9011906MA200
Bolt, with washer
Loading…
↗
17
68F116360100
Piston (0.50mm o/s)
Loading…
↗
18
68F116310185
Piston (std)
Loading…
↗
19
64D116460200
Piston 2 (0.50mm o/s)
Loading…
↗
20
64D116050200
Piston ring set (0.50mm o/s)
Loading…
↗
21
6R5116331000
Pin, piston
Loading…
↗
22
6R5116341000
Clip, piston pin
Loading…
↗
23
6R5116501000
Connecting kit
Loading…
↗
24
901090802200
Bolt
Loading…
↗
25
93310323V600
Bearing
Loading…
↗
26
9020123M0100
Washer, plate(6g6)
Loading…
↗
27
93310836U000
Bearing, cylindrical(61u)
Loading…
↗
