225AETOL (1989)
Crankshaft & Piston

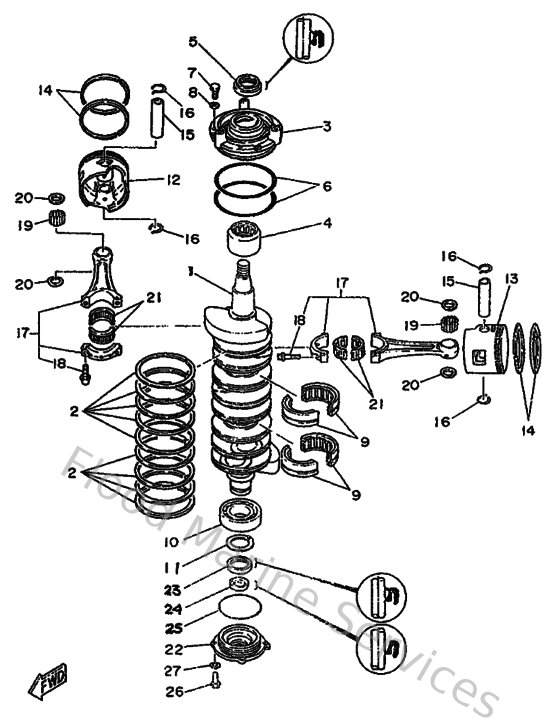

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6G5114110000
Crankshaft
Loading…
↗
2
6E5114470000
Seal, ring
Loading…
↗
3
6E5151630094
Housing, bearing 1
Loading…
↗
4
93311940U300
Brg,cyl-cal roller 36g (6e5)
Loading…
↗
5
9310240M3800
Oil seal(61a)
Loading…
↗
6
932110438400
O-ring (705)
Loading…
↗
7
973130602000
Bolt(7u8)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
93310954U100
Bearing, cylindrical(64c)
Loading…
↗
10
93306208U000
Brg,r-b 6208 80mm 345g (6e5)
Loading…
↗
11
9341040M0300
Circlip(n02)
Loading…
↗
12
6R5116360100
Piston (0.50mm o/s)
Loading…
↗
13
6R5116460100
Piston 2 (0.50mm o/s)
Loading…
↗
14
64D116050200
Piston ring set (0.50mm o/s)
Loading…
↗
15
6K7116330000
Pin, piston
Loading…
↗
16
6E5116340000
Clip, piston pin
Loading…
↗
17
6E5116500100
Rod, connecting assembly
Loading…
↗
18
901090802200
Bolt
Loading…
↗
19
936032111100
Pin, dowel(663)
Loading…
↗
20
9020121M7500
Washer, plate (6f3)
Loading…
↗
21
93310836V200
Brg, cyl-cal roller (6e5)
Loading…
↗
22
6G5153590094
Housing, oil seal
Loading…
↗
23
9310235M1300
Oil seal (6e5)
Loading…
↗
24
9310122M1500
Oil seal (6e5)
Loading…
↗
25
9321074M3500
O-ring (6e5)
Loading…
↗
26
973950602000
Bolt(7u8)
Loading…
↗
