Yamaha Outboard Parts - Crankshaft & Piston - 225BETOL (1995) | Flood Marine

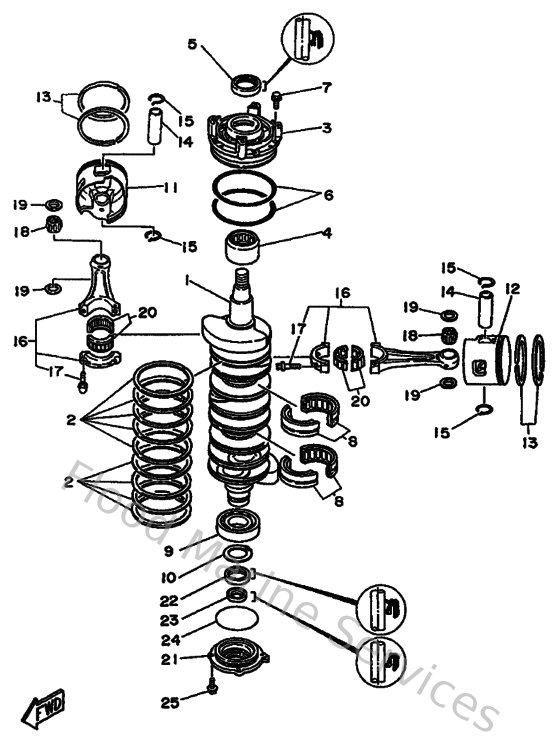

Diagram: Crankshaft & Piston

Diagram

Parts List

Reference
Description
Price


1
6R3114110000
Crankshaft
Loading…

↗
2
6E5114470000
Seal, ring
Loading…

↗
3
6R3151630094
Housing, bearing 1
Loading…

↗
11
6R5116311193
Piston (std)
Loading…

↗
12
6R5116461100
Piston 2 (0.50mm o/s)
Loading…

↗
13
64D116050200
Piston ring set (0.50mm o/s)
Loading…

↗
14
6R5116331000
Pin, piston
Loading…

↗
15
6R5116341000
Clip, piston pin
Loading…

↗
16
6R5116501000
Connecting kit
Loading…

↗
21
6G5153590094
Housing, oil seal
Loading…

↗
