250AETOXLX (1998)
Crankshaft & Piston

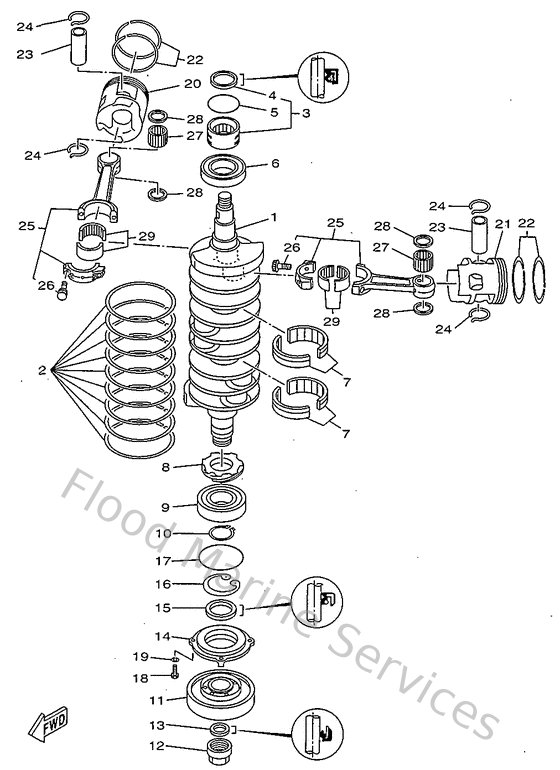

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
61A114110000
Crankshaft
Loading…
↗
2
61A114470000
Seal, crank
Loading…
↗
3
93311940V000
Bearing, cylindrical(61a)
Loading…
↗
4
9310240M3800
Oil seal(61a)
Loading…
↗
5
9321054M5400
O-ring (6g1)
Loading…
↗
6
93306209U100
Bearing(61a)
Loading…
↗
7
93310959U000
Bearing, cylindrical(61a)
Loading…
↗
8
61A115360000
Gear, drive
Loading…
↗
9
93306308U000
Bearing(61a)
Loading…
↗
10
9341040M0300
Circlip(n02)
Loading…
↗
11
61A115860100
Pulley, crankshaft balance
Loading…
↗
12
60V115550000
Nut, crankshaft 1
Loading…
↗
13
9310422M0700
Oil seal(61a)
Loading…
↗
14
61A153590094
Housing, oil seal
Loading…
↗
15
9310240M3600
Oil seal
Loading…
↗
16
9342061M0700
Circlip(61a)
Loading…
↗
17
9321081MA600
O-ring(61a)
Loading…
↗
18
970950602000
Bolt(7u8)
Loading…
↗
19
929950610000
Washer(6a1)
Loading…
↗
20
69L116360000
Piston (0.50mm o/s)
Loading…
↗
21
69L116460000
Piston 2 (0.50mm o/s)
Loading…
↗
22
64D116050200
Piston ring set (0.50mm o/s)
Loading…
↗
23
61A116330200
Pin, piston
Loading…
↗
24
61A116340000
Clip, piston pin
Loading…
↗
25
61A116500000
Connecting Rod assembly
Loading…
↗
26
901090900100
Bolt
Loading…
↗
27
93310326V400
Bearing, cylindrical(61a)
Loading…
↗
28
9020126M0300
Washer, plate(61a)
Loading…
↗
29
93310840V800
Bearing
Loading…
↗
