40QMH (1990)
Crankshaft & Piston

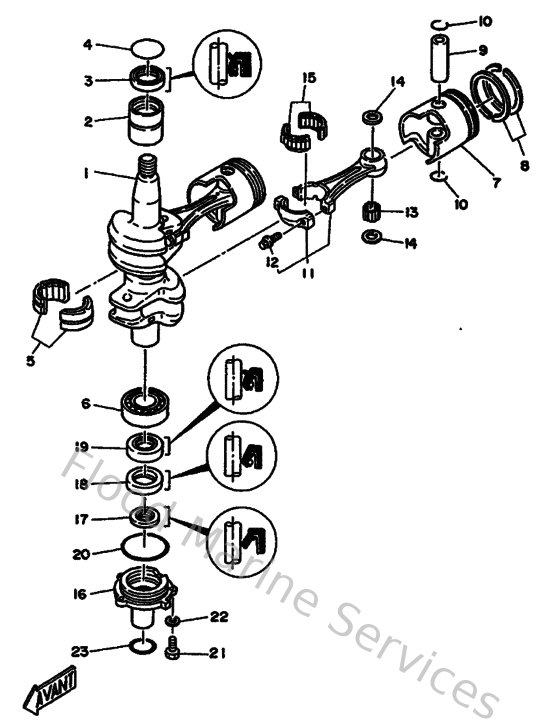

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
2
93311632U200
Brg Cyl-Cal Roller 238G (6A0)
Loading…
↗
3
9310232M0700
Oil seal (697)
Loading…
↗
4
932104215900
O-ring (647)
Loading…
↗
5
93311832U400
Bearing, needle (6f0)
Loading…
↗
6
93306206U400
Brg,r-b 6206 66mm 236g (696)
Loading…
↗
7
6E9116360000
Piston (0.50Mm O/s)
Loading…
↗
8
679116100000
Piston Ring Set (S.t.d)
Loading…
↗
9
676116330000
Pin, piston
Loading…
↗
10
688116340000
Clip, piston pin
Loading…
↗
11
6E9116500100
Connecting Rod Assembly
Loading…
↗
12
901090802200
Bolt
Loading…
↗
13
936032111100
Pin, dowel(663)
Loading…
↗
14
902012041700
Washer, plate(663)
Loading…
↗
15
93310730V600
Bearing, needle (6e9)
Loading…
↗
16
6E915396015B
Housing Oil Seal
Loading…
↗
17
9310416M0400
Oil seal(6a8)
Loading…
↗
18
9310128M1900
Oil Seal
Loading…
↗
19
9310228M0800
Oil Seal
Loading…
↗
20
932106226900
Ring, o(663)
Loading…
↗
21
973130601600
Bolt, hexagon deep recess
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
9321022M0200
O-ring (676)
Loading…
↗
