Yamaha Outboard Parts - Crankshaft & Piston - 6CMH (1998) | Flood Marine

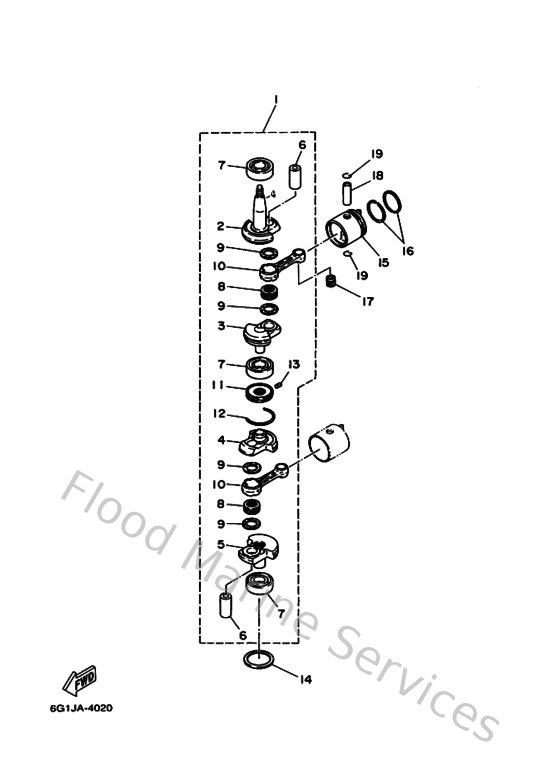

Diagram: Crankshaft & Piston

Diagram

Parts List

Reference
Description
Price


1
6N0E14000000
Crankshaft assembly
Loading…

↗
7
93306204U000
Bearing(6e0)
Loading…

↗
14
902014130300
Washer, plate
Loading…

↗
15
6G1116310098
Piston (std)
Loading…

↗
16
6G1116100000
Piston ring set (std)
Loading…

↗
17
93310112V000
Bearing (6e0)
Loading…

↗
18
6G1116330000
Pin, piston
Loading…

↗
19
934501302200
Circlip 132116340000
Loading…

↗
