6DMH (1997)
Crankshaft & Piston

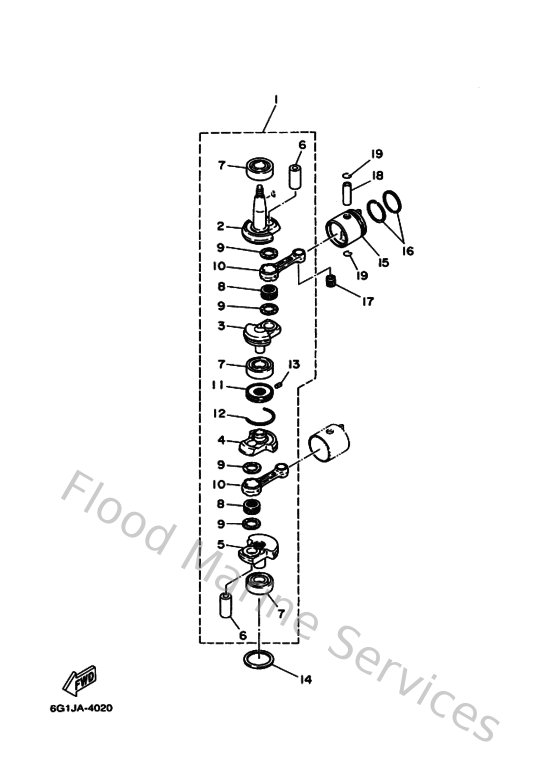

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6N0E14000000
Crankshaft assembly
Loading…
↗
2
6N0E14120000
Crank 1
Loading…
↗
3
6N0E14220000
Crank 2
Loading…
↗
4
6N0E14320000
Crank 3
Loading…
↗
5
6N0E14420000
Crank 4
Loading…
↗
6
6G1116810000
Pin, crank
Loading…
↗
7
93306204U000
Bearing(6e0)
Loading…
↗
8
93310418V100
Bearing (6e0)
Loading…
↗
9
902091811200
Washer 132116850000
Loading…
↗
10
6N0E16510000
Rod connecting
Loading…
↗
11
6N0E15150000
Seal, labyrinth 1
Loading…
↗
12
934404705500
Cir clip (655)
Loading…
↗
13
916092000800
Pin, spring
Loading…
↗
14
902014130300
Washer, plate
Loading…
↗
15
6G1116310098
Piston (std)
Loading…
↗
16
6G1116100000
Piston ring set (std)
Loading…
↗
17
93310112V000
Bearing (6e0)
Loading…
↗
18
6G1116330000
Pin, piston
Loading…
↗
19
934501302200
Circlip 132116340000
Loading…
↗
