70BETO (1988)
Crankshaft & Piston

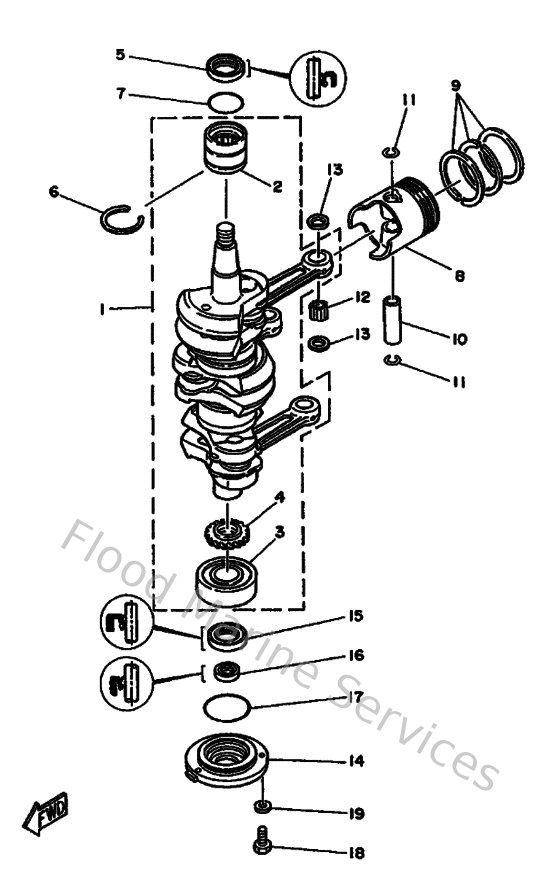

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6H3114001000
Crankshaft assembly
Loading…
↗
2
93311636U600
Bearing, needle (6h3)
Loading…
↗
3
93306306V100
Bearing(6h2)
Loading…
↗
5
931023635100
Oil seal(52w)
Loading…
↗
6
9344049M0400
Circlip (6h3)
Loading…
↗
7
9321046M1600
O-ring (688)
Loading…
↗
8
6B0116360000
Piston (0.50Mm O/s)
Loading…
↗
9
6H3116100000
Piston ring set (std)
Loading…
↗
10
6H3116330000
Pin, piston
Loading…
↗
11
688116341000
Clip, piston pin
Loading…
↗
13
902012041700
Washer, plate(663)
Loading…
↗
15
9310230M2300
Oil seal (6h3)
Loading…
↗
16
9310618M0100
Oil seal (6h3)
Loading…
↗
17
9321065M5000
O-ring
Loading…
↗
18
973950602000
Bolt(7u8)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
