Yamaha Outboard Parts - Crankshaft & Piston - 75CETO (2000) | Flood Marine

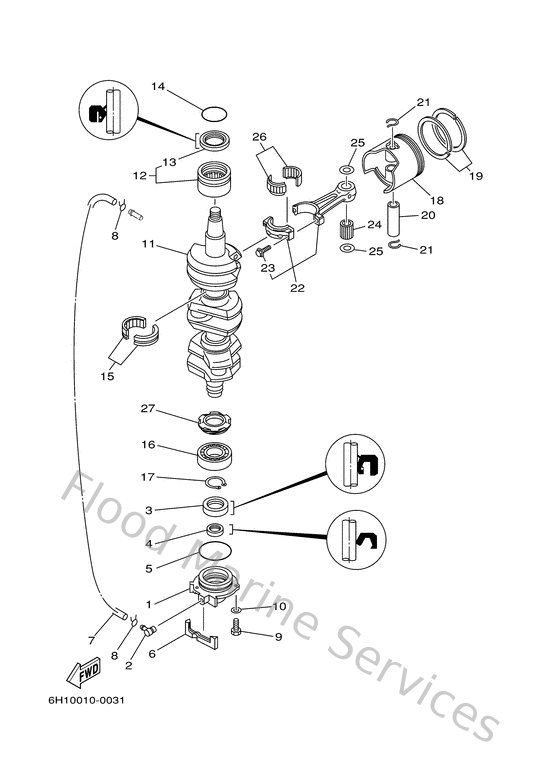

Diagram: Crankshaft & Piston

Diagram

Parts List

Reference
Description
Price


1
6H1153590194
Housing, oil seal
Loading…

↗
2
688113700000
Check valve assembly
Loading…

↗
3
9310230M0500
Oil seal (688)
Loading…

↗
4
9310420M0200
Oil seal (688)
Loading…

↗
5
932106226900
Ring, o(663)
Loading…

↗
6
688153790000
Seal, crank case
Loading…

↗
7
9044507M8600
Hose (l770)
Loading…

↗
8
904670601600
Clip (655)
Loading…

↗
9
970950602000
Bolt(7u8)
Loading…

↗
10
929950660000
Washer, plain (646)
Loading…

↗
11
688114110100
Crank, shaft
Loading…

↗
12
93310636U400
Bearing (688)
Loading…

↗
13
9310236M0200
Oil seal(52w)
Loading…

↗
14
9321046M1600
O-ring (688)
Loading…

↗
15
93310835U800
Brg,cyl-cal roller (688)
Loading…

↗
16
93306206U500
Brg,r-b 6206 66mm (688)
Loading…

↗
17
9341032M0000
Circlip
Loading…

↗
18
6H1116360300
Piston (0.50mm o/s)
Loading…

↗
19
68811603A000
Piston ring set (std)
Loading…

↗
20
663116330000
Pin, piston
Loading…

↗
21
688116341000
Clip, piston pin
Loading…

↗
22
688116500300
Connecting rod assembly
Loading…

↗
23
9010908M6100
Bolt
Loading…

↗
24
936032111100
Pin, dowel(663)
Loading…

↗
25
902012041700
Washer, plate(663)
Loading…

↗
26
93310730V800
Bearing (688)
Loading…

↗
27
6H1115360000
Gear, drive
Loading…

↗
