80AETOL (1997)
Crankshaft & Piston

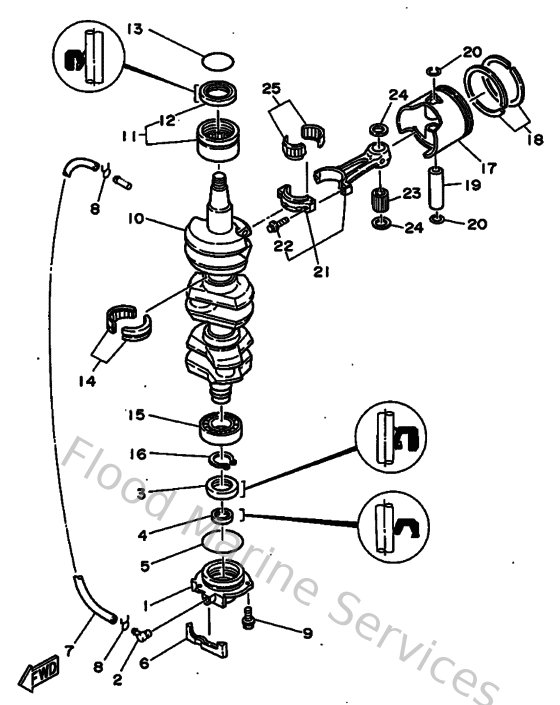

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6H1153590194
Housing, oil seal
Loading…
↗
2
688113700000
Check valve assembly
Loading…
↗
3
9310230M0500
Oil seal (688)
Loading…
↗
4
9310420M0200
Oil seal (688)
Loading…
↗
5
932106226900
Ring, o(663)
Loading…
↗
6
688153790000
Seal, crank case
Loading…
↗
7
904450700600
Hose (l770)
Loading…
↗
8
904670601600
Clip (655)
Loading…
↗
9
975950652000
Bolt(7u8)
Loading…
↗
10
688114110100
Crank, shaft
Loading…
↗
11
93310636U400
Bearing (688)
Loading…
↗
12
9310236M2400
Oil seal(52w)
Loading…
↗
13
9321046M1600
O-ring (688)
Loading…
↗
14
93310835U800
Brg,cyl-cal roller (688)
Loading…
↗
15
93306206U500
Brg,r-b 6206 66mm (688)
Loading…
↗
16
9341032M0000
Circlip
Loading…
↗
17
6H1116310395
Piston (std)
Loading…
↗
18
68811605A000
Piston ring set (0.50mm o/s)
Loading…
↗
19
663116330000
Pin, piston
Loading…
↗
20
688116341000
Clip, piston pin
Loading…
↗
21
688116500300
Connecting rod assembly
Loading…
↗
22
9010908M6100
Bolt
Loading…
↗
23
936032111100
Pin, dowel(663)
Loading…
↗
24
902012041700
Washer, plate(663)
Loading…
↗
25
93310730V800
Bearing (688)
Loading…
↗
