9.9DMH (1985)
Crankshaft & Piston

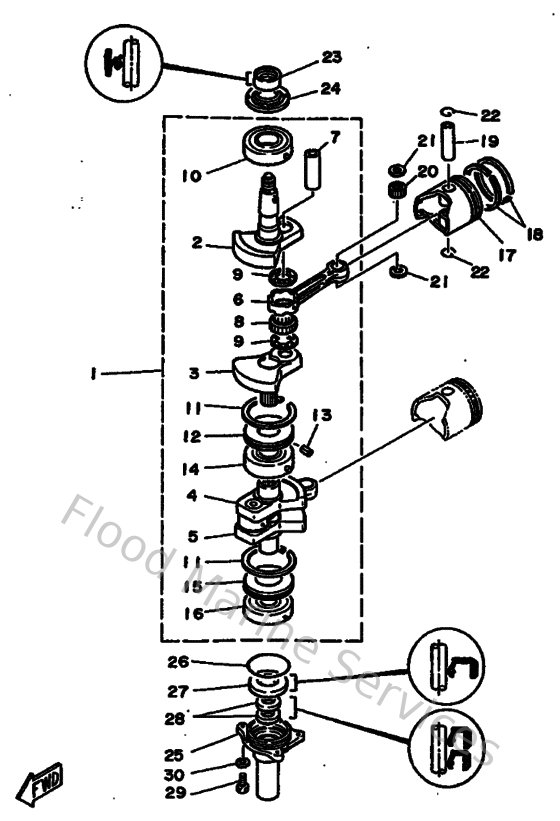

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
682114000000
Crankshaft assembly
Loading…
↗
2
682114120000
Crank 1
Loading…
↗
3
682114220000
Crank 2
Loading…
↗
5
682114420300
Crank 4
Loading…
↗
6
650116510300
Rod, connecting
Loading…
↗
7
682116810000
Pin crank
Loading…
↗
8
93310620V500
Bearing, big end (682)
Loading…
↗
9
902092015900
Washer, crank pin (1h9)
Loading…
↗
10
933062051400
Bearing(6e8)
Loading…
↗
11
9344057M0100
Circrip (682)
Loading…
↗
12
682115150100
Seal, labyrinth 1
Loading…
↗
13
916902000800
Pin, spring
Loading…
↗
14
93304205U000
Brg,r-b 4205 57mm 238g (682)
Loading…
↗
15
682115250000
Seal labyrinth 2
Loading…
↗
16
93306304U000
Brg,r-b 6304 57mm (682)
Loading…
↗
17
6E7116360000
Piston (2nd o.s)
Loading…
↗
18
682116102100
Piston ring set (2nd o/s)
Loading…
↗
19
634116330000
Pin, piston
Loading…
↗
20
936021410400
Pin, dowel
Loading…
↗
21
902011437700
Washer, plate
Loading…
↗
22
934501502300
Circlip 131116340000
Loading…
↗
23
9311023M0000
Oil seal (682)
Loading…
↗
24
682114450000
Spacer
Loading…
↗
25
68215359009M
Housing, oil seal (682)
Loading…
↗
26
9321053M0800
O-ring(50m)
Loading…
↗
27
9310120M1000
Oil seal (682)
Loading…
↗
28
9310113M1100
Oil seal (682)
Loading…
↗
29
973950601600
Bolt, hexagon deep recess
Loading…
↗
30
929900660000
Washer, plain (646)
Loading…
↗
