90AETOL (1987)
Crankshaft & Piston

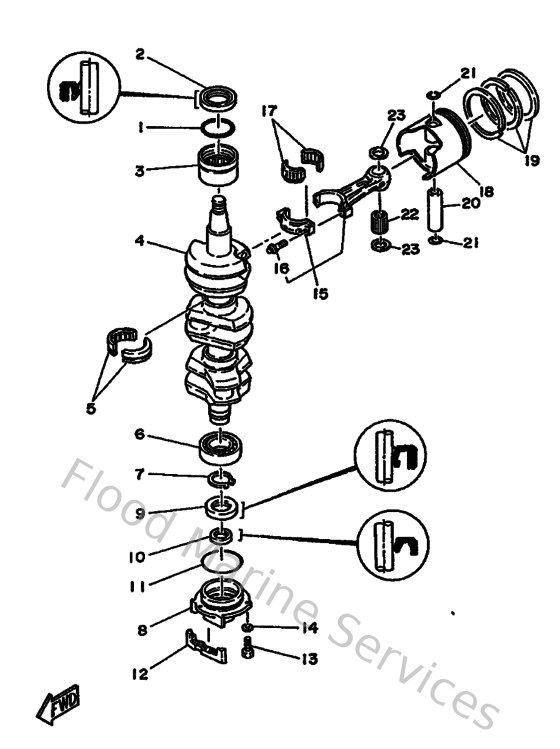

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
2
9310236M0200
Oil seal(52w)
Loading…
↗
3
93310636U400
Bearing (688)
Loading…
↗
4
688114110100
Crank, shaft
Loading…
↗
5
93310835U800
Brg,cyl-cal roller (688)
Loading…
↗
7
934103207500
Circlip
Loading…
↗
9
9310230M0500
Oil seal (688)
Loading…
↗
10
9310420M0200
Oil seal (688)
Loading…
↗
11
932106226900
Ring, o(663)
Loading…
↗
13
973950602000
Bolt(7u8)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
688116500300
Connecting rod assembly
Loading…
↗
16
901090846200
Bolt
Loading…
↗
17
93310730V800
Bearing (688)
Loading…
↗
18
6H1116310096
Piston (Std)
Loading…
↗
19
6H1116102000
Piston Ringset (2Nd O.s.)
Loading…
↗
20
676116330000
Pin, piston
Loading…
↗
21
688116341000
Clip, piston pin
Loading…
↗
22
936032111100
Pin, dowel(663)
Loading…
↗
23
902012041700
Washer, plate(663)
Loading…
↗
