F50AE (2001)
Crankshaft & Piston

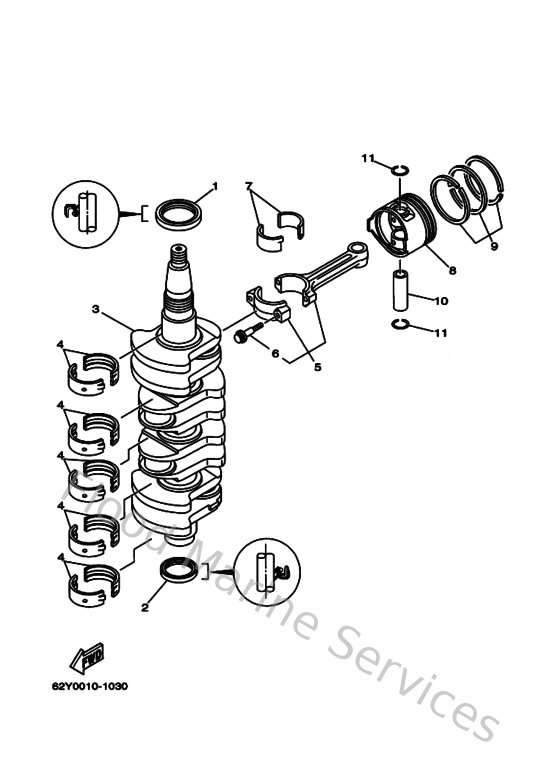

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
9310243M4200
Oil seal(62y)
Loading…
↗
2
931013500200
Oil seal
Loading…
↗
3
62Y114112000
Crankshaft & nut set
Loading…
↗
4
6C5114163000
Plane bearing, crankshaft 1
Loading…
↗
5
62Y116501000
Connecting rod assembly
Loading…
↗
6
6C5116540000
Bolt, connecting rod
Loading…
↗
7
6CJ116563000
Plane bearing, connecting rod
Loading…
↗
8
62Y116361000
Piston (0.50mm o/s)
Loading…
↗
9
64J116050100
Piston ring set (0.50mm o/s)
Loading…
↗
10
62Y116330000
Pin, piston
Loading…
↗
11
934501712900
Circlip(1ar)
Loading…
↗
