F9.9BMH (1986)
Crankshaft & Piston

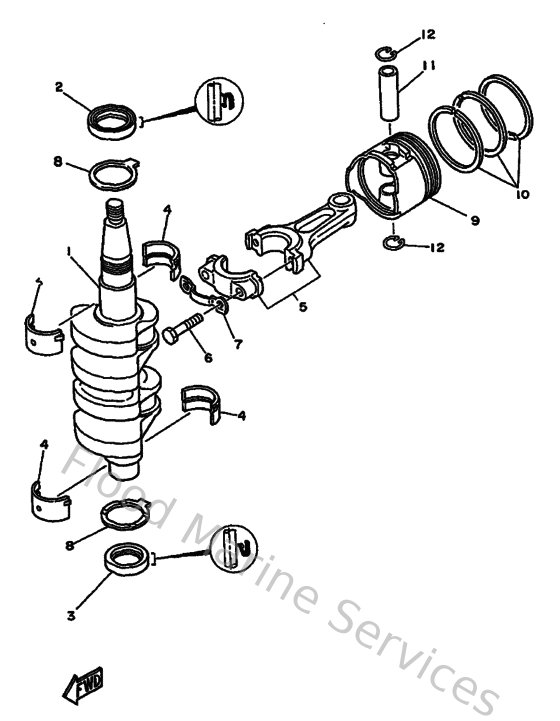

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
6G8114110100
Crankshaft
Loading…
↗
2
9310230M2200
Oil seal (6g8)
Loading…
↗
3
9310125M2400
Oil seal (6g8)
Loading…
↗
4
6G8114162000
Bearing, plain
Loading…
↗
5
6G8116500100
Connecting rod kit
Loading…
↗
6
6G8116540000
Bolt, Connecting Rod
Loading…
↗
7
6G8114490000
Washer, plate(6g8)
Loading…
↗
8
6G8114260000
Bearing, Thrust 1
Loading…
↗
9
6G8116310097
Piston (std)
Loading…
↗
10
6G8116102000
Piston Ring Set (2Nd O/s)
Loading…
↗
11
6G8116330000
Pin, piston
Loading…
↗
12
934501502300
Circlip 131116340000
Loading…
↗
