Yamaha Outboard Parts - Crankshaft & Piston - FT8DMHSL (2001) | Flood Marine

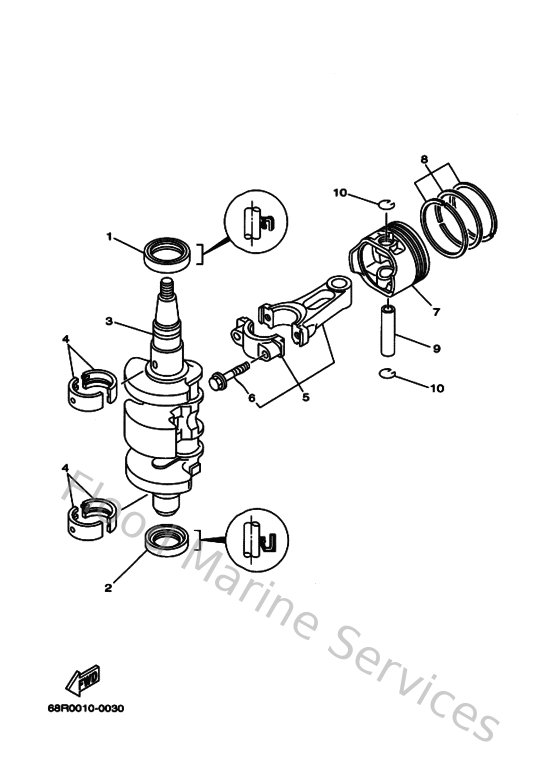

Diagram: Crankshaft & Piston

Diagram

Parts List

Reference
Description
Price


1
9310230M2200
Oil seal (6g8)
Loading…

↗
2
9310125M6900
Oil seal
Loading…

↗
3
68T114110000
Crankshaft
Loading…

↗
4
68T114162100
Plane bearing, crankshaft 1
Loading…

↗
5
68T116500000
Connecting rod kit
Loading…

↗
6
67D116540000
Bolt, connecting rod
Loading…

↗
7
60RE16360000
Piston (0.50mm o/s)
Loading…

↗
8
68T116050100
Piston ring set (0.50mm o/s)
Loading…

↗
9
68T116330000
Pin, piston
Loading…

↗
10
934501502300
Circlip 131116340000
Loading…

↗
