LF115AET (2000)
Crankshaft & Piston

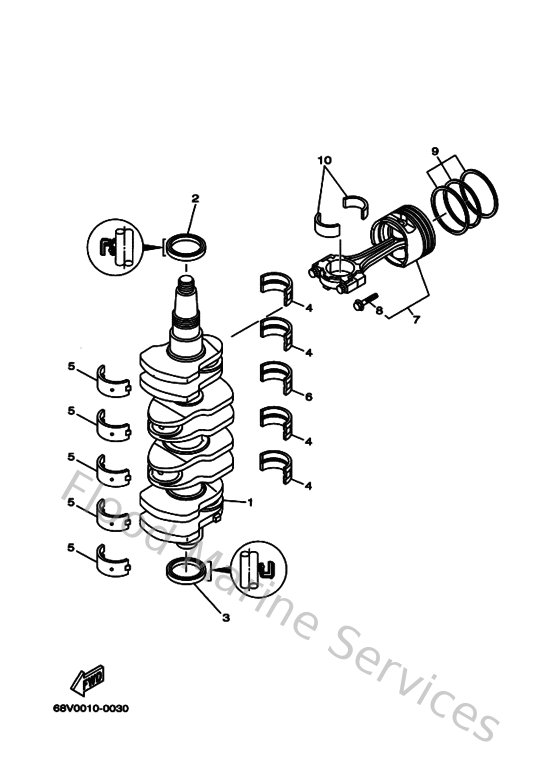

Diagram: Crankshaft & Piston
Parts List
Reference
Description
Price
1
68V114110000
Crankshaft
Loading…
↗
2
9310248M6000
Oil seal
Loading…
↗
3
9310148M6800
Oil seal
Loading…
↗
4
67F114162000
Plane bearing, crankshaft 1
Loading…
↗
5
67F114170000
Plane bearing, crankshaft 2
Loading…
↗
6
67F114182000
Plane bearing, crankshaft 3
Loading…
↗
7
68VW11640000
Piston/con-rod assembly std
Loading…
↗
8
K1CA32750000
Bolt, connecting rod
Loading…
↗
9
6D8116041000
Piston ring set (0.25mm o/s)
Loading…
↗
10
68V116560000
Plane bearing, connecting rod
Loading…
↗
