Yamaha Outboard Parts - Cylinder - 20DMHO (1995) | Flood Marine

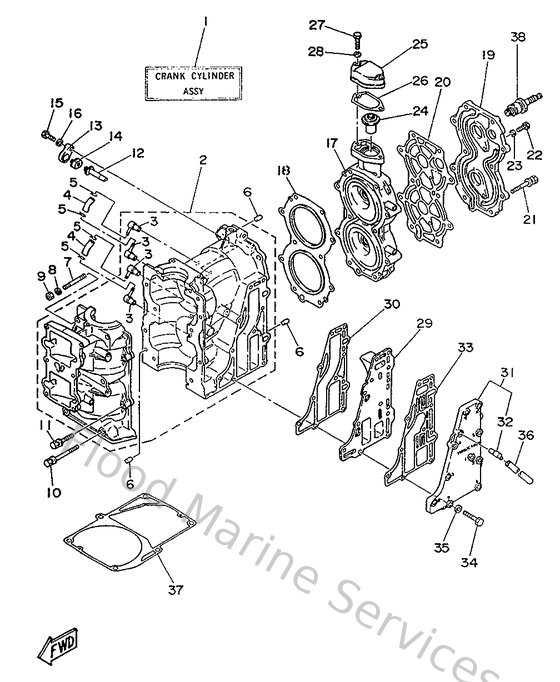

Diagram: Cylinder

Diagram

Parts List

Reference
Description
Price


1
6L2W0090114D
Crank Cylinder assembly
Loading…

↗
2
6L2151001094
Crankcase assembly
Loading…

↗
3
6E5113720000
Nipple, hose
Loading…

↗
4
9044507M1500
Hose (l390)
Loading…

↗
5
904670601600
Clip (655)
Loading…

↗
6
9360410M0300
Pin, dowel (688)
Loading…

↗
7
956170864500
Bolt, stud(6l2)
Loading…

↗
8
902010808600
Washer (1t1)
Loading…

↗
9
953330860000
Nut(6l2)
Loading…

↗
10
9011908M0700
Bolt, with washer(63v)
Loading…

↗
11
9011906M1400
Bolt, with washer (677)
Loading…

↗
12
6J8113250000
Anode
Loading…

↗
13
6H3113270094
Cover, anode
Loading…

↗
14
6H3113280000
Grommet, anode
Loading…

↗
15
970950601600
Bolt, hexagon deep recess
Loading…

↗
16
929900660000
Washer, plain (646)
Loading…

↗
17
6L211111011S
Head, cylinder 1
Loading…

↗
18
6L211181A100
Gasket, cylinder head 1
Loading…

↗
19
6L211191009M
Cover, cylinder head 1
Loading…

↗
20
6L211193A100
Gasket, head cover 1
Loading…

↗
21
9011908M6600
Bolt, with washer
Loading…

↗
24
6E5124112000
Thermostat
Loading…

↗
25
6H412413009M
Cover, thermostat
Loading…

↗
26
61A12414A000
Gasket, cover
Loading…

↗
27
970950602500
Bolt
Loading…

↗
29
6L241111009M
Inner cover, exhaust
Loading…

↗
30
6L241112A300
Gasket, exhaust inner cover
Loading…

↗
31
6L241113009M
Outer cover, exhaust
Loading…

↗
32
676113720000
Nipple, hose
Loading…

↗
33
6L241114A100
Gasket, exhaust outer cover
Loading…

↗
34
970950603000
Bolt(jf7)
Loading…

↗
36
9044510M4000
Hose (l400)
Loading…

↗
37
6L245113A100
Gasket, upper casing
Loading…

↗
38
947020027100
Plug, spark (br7hs-10)
Loading…

↗
